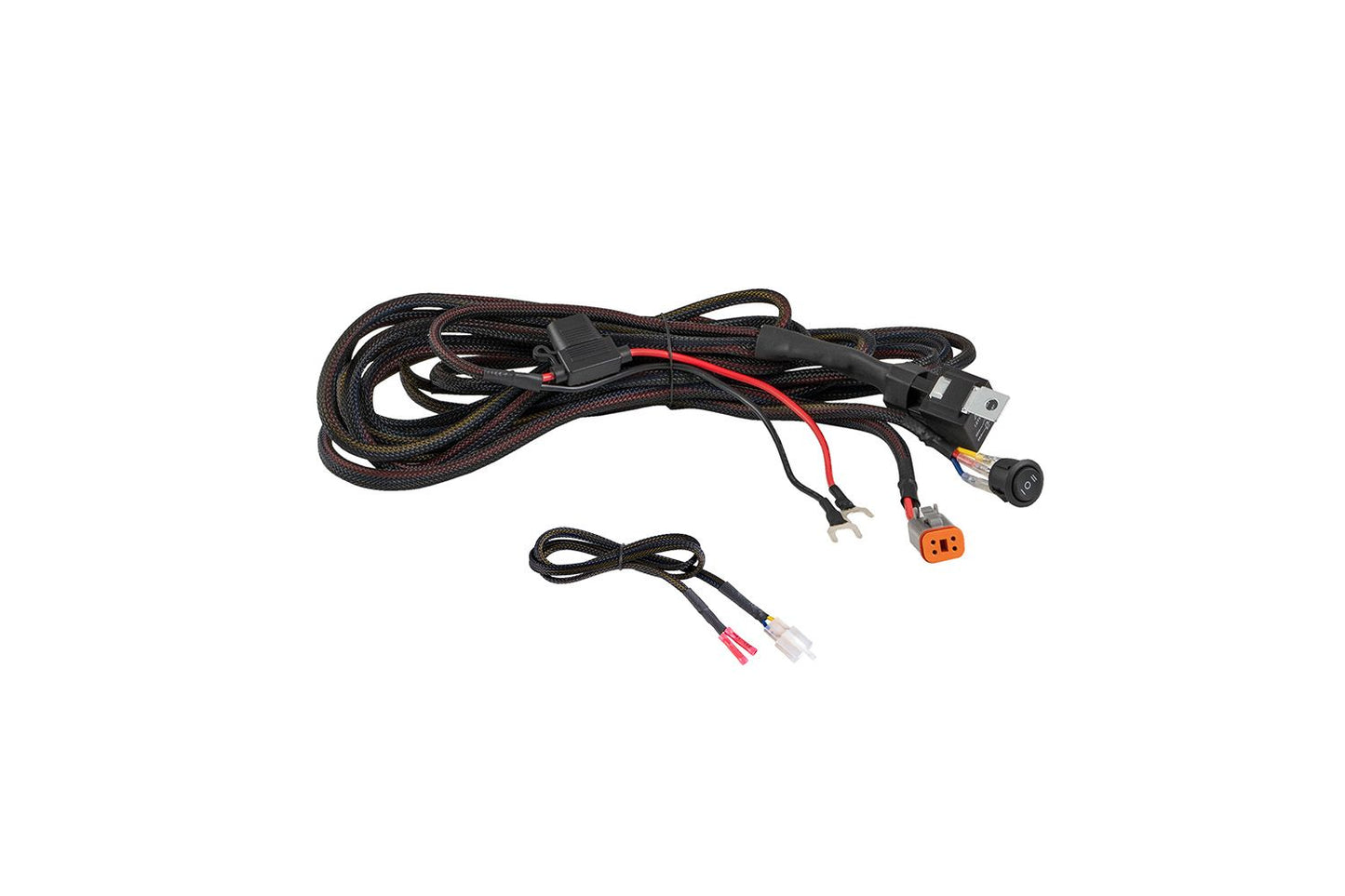

Diode Dynamics - Heavy Duty Single Output 4-pin Wiring Harness

Diode Dynamics - Heavy Duty Single Output 4-pin Wiring Harness

Regular price $40.00 USD
Regular price Sale price $40.00 USD
Sale Sold out
Shipping calculated at checkout.

Features

  • Powers Diode Dynamics LED pods with backlight functionality.
  • Connects directly to the battery to power your LED pods.
  • High capacity 14AWG wiring.
  • Single Deutsch DT output connector.
  • 30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods.

Overview

Stage Series. This harness is intended to be used with our Stage Series LED Pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and a Deutsch DT connector for simple plug-and-play installation.

This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.

  • C1 Sport: 1.2A
  • C1 Pro: 1.7A
  • SSC2 Sport: 0.6A
  • SSC2 Pro: 1.75A
  • SS3 Sport: 2.9A
  • SS3 Pro: 1.2A
  • SS3 Max: 3.3A
  • SS5 Sport: 2.8A
  • SS5 Pro: 6.7A

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!


What's Included

In the Box:
  • One (1) wiring harness
  • One (1) toggle switch

Quantity: One (1)

Warranty: 3 year warranty

Fitment

NOTE: This harness is intended to be used with our Stage Series pods with backlight functionality. If you are looking to power non-backlit Stage Series products, click here.
