Camburg

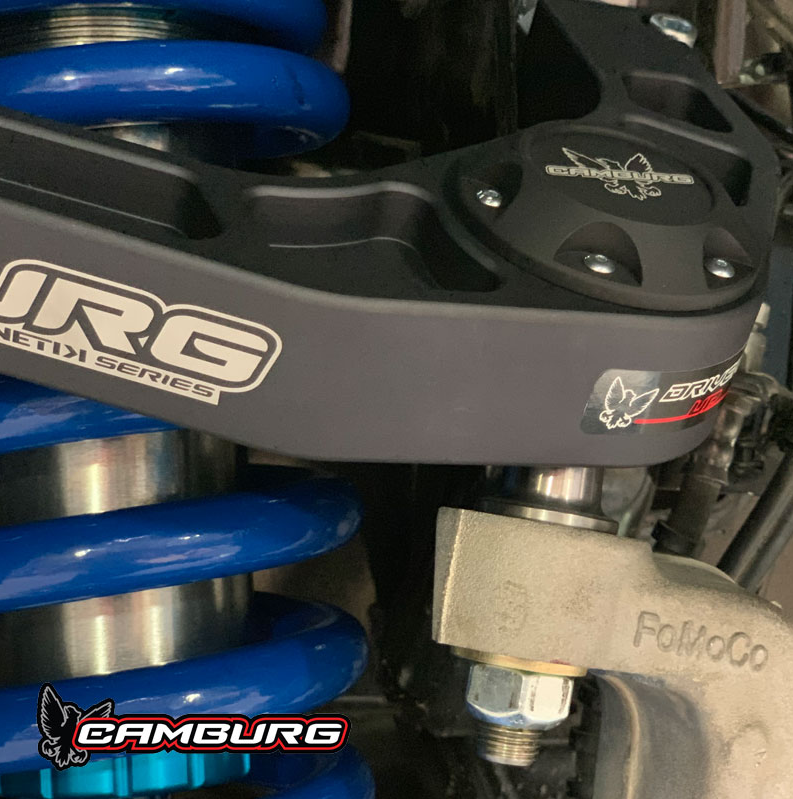

Camburg Ford F-150 2wd/4wd 04-20 Kinetik Series Billet Upper Arms

Camburg Ford F-150 2wd/4wd 04-20 Kinetik Series Billet Upper Arms

Regular price $1,499.99 USD
Regular price Sale price $1,499.99 USD
Sale Sold out
Shipping calculated at checkout.
QUICK OVERVIEW
  • Increases usable wheel travel
  • Corrects camber and caster
  • Eliminates weak factory ball-joints
  • 1.25″ FK uniballs w/ billet caps
  • 6061 billet aluminum construction
  • Made in the USA
  • Fits 2004-2020 F150

Countless hours were spent designing and refining these arms to the point where they met our high standards. CAD designing and machining gave us the ability to bring some new design elements and features to the table. We CNC machine these from aerospace quality 6061 billet aluminum, then send them out to be bead blasted, Type II anodized gun metal gray and have our Camburg logo laser etched.

Like our tubular arms we use a larger FK 1.25” uniball that has a PTFE liner for increased strength and mis-alignment for maximum useable wheel travel. Made in the USA these are far superior to the cheaper and smaller imports other companies use. Adapting the uniball to the spindle/knuckle is done using model specific spacers that match the factory taper precisely. These are machined from heat-treated stainless steel and are a one piece design for increased strength. No drilling or modifications are needed. The 1.25” uniball gives us the ability to run a larger and stronger 9/16” 12 point bolt with a low profile bolt-on uniball cap to resist the elements.

Using larger and stronger FK 7/8” chromoly heim joints allows for additional camber and caster adjustment if needed with larger 6” suspension kits or damaged frames. Using a heim joint also eliminates flexing/deflection under hard use and braking with zero binding when in use. Using AN/Mil-spec hardware we have a single pinch bolt and secondary jam nut to insure the heim is secure with the rigors of off-road use.

  • Increases usable wheel travel
  • Corrects camber and caster
  • Eliminates weak factory ball-joints
  • CNC machined 6061 billet aluminum
  • CAD/CAM engineered
  • FK 7/8″ heim joints for adjustable camber and caster
  • FK 1.25″ PTFE-lined uniballs pre-installed
  • Anodized and laser etched
  • All necessary hardware included and ready to install
  • Made in the USA
  • Designed for 1-3″ of lift

Whats Included:

  • Camburg Billet Upper Arms
  • Bolt-on Uniball Caps
  • FK 7/8″ Heim Joints
  • FK 1.25″ Uniballs
  • Heat-treated stainless steel uniball and heim spacers
  • Grade 8 and AN Aircraft Hardware

Notes:

  • When running 35″ tires you need a zero offset wheel so the tire doesn’t rub on the upper arm at full turn. When running a 33″ tire you can run a +18 positive offset wheel for better tire clearance at the fender. Tire size is dependent on how much lift is achieved from coilovers.
  • Note: factory 20″ wheels will not clear the upper arm and may require a wheel spacer. We highly recommend aftermarket wheels with the correct offset with all our Ford kits for optimum performance and fit.

Installation Instruction
