F150 Raptor 2017-2019 – Rear Spring Kit (Pair)

F150 Raptor 2017-2019 – Rear Spring Kit (Pair)

Regular price $1,673.00 USD
Regular price Sale price $1,673.00 USD
Sale Sold out
Shipping calculated at checkout.

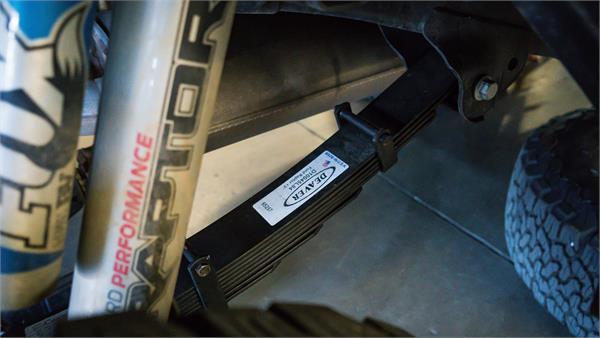

Deaver Progressive Series springs are high-quality 9-leaf, 10-leaf, and 12 leaf units fabricated with high grade 5160 “American Made” steel. A higher leaf count spring allows the use of thinner leaf material that yields a more flexible progressive leaf stack, or pyramid, producing a much smoother spring rate curve throughout the complete suspension cycle. The even, linear compression rate curve of our progressive system spring is the primary key to excellent ride quality.



  • 11 leaf count of thin material
  • Military wrap
  • Reversed eyes front and rear to maximize compression travel at ride height
  • Diamond cut ends with insert pads on the tips to reduce friction
  • Improves off road performance
  • Direct bolt on to stock location

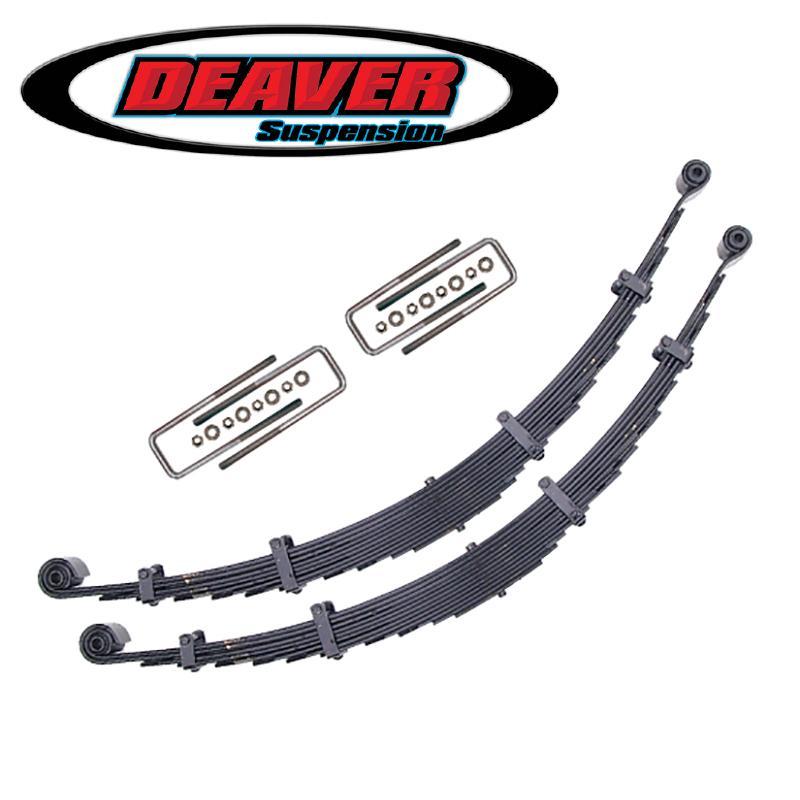

  • Leaf springs
  • U bolts
  • Bushing kit
  • 18mm front eye bolts
Lift Heights:
  • +2" eliminates the factory 2" block and will sit level
  • +3" eliminates the factory 2" block and will lift the rear by 1
  • Pair withour KHC SHACKLE to maintain stock height, but increase travel and ride quality
  • Also available is our KHC LEAF SPRING TOP PLATES to help decrease the chance of a cracked spring
