Baja Designs

Ford, Bronco (21-On), A-Pillar Kits

Ford, Bronco (21-On), A-Pillar Kits

Regular price $503.95 USD
Regular price Sale price $503.95 USD
Sale Sold out
Shipping calculated at checkout.
Model & Wiring

Description:



 The Bronco is a great platform to plan your next adventure around which is why we thought it might be necessary to offer enthusiasts a superior lighting solution. This lighting kit includes a pair of Squadron Pro LED auxiliary lights in spot, along with a set of wide cornering, and wide cornering lenses in the case you would like to change the pattern to a more near-field orientation. The accessories included in this kit are a relay style harness with toggle switch, and hardware. The installation process of this kit is extremely simple and does not require any cutting or drilling.





Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications(Per Light):
Lumens: 4,600 Utilizing 2 types of Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)



Application:

  • 2021 - On Ford Bronco

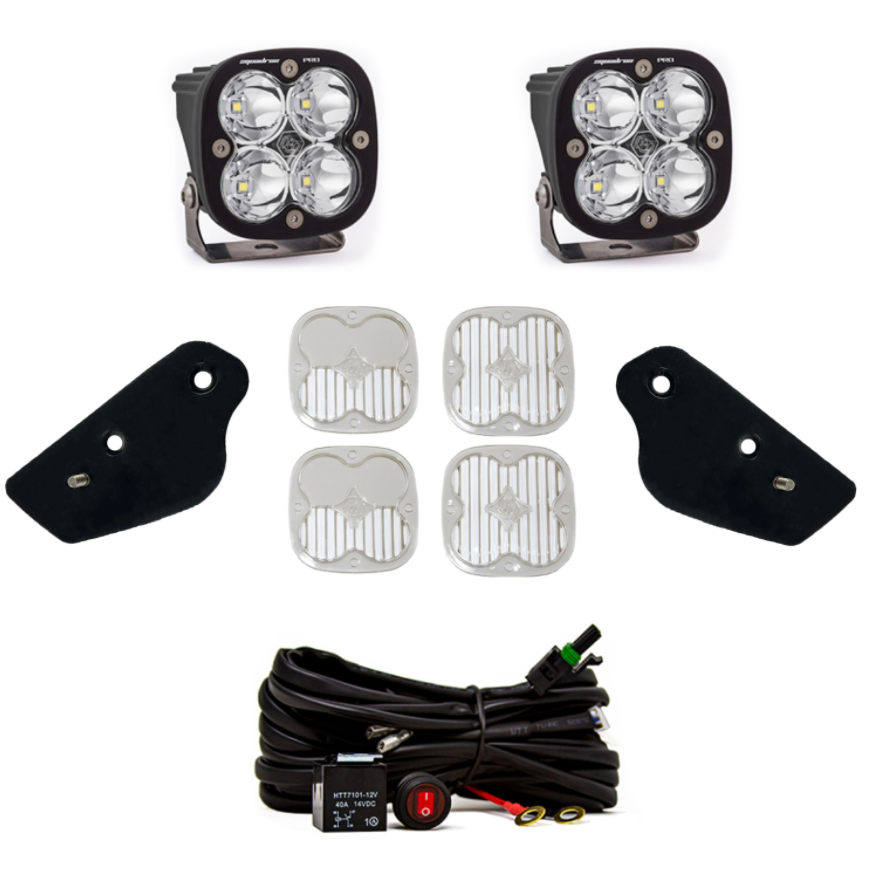

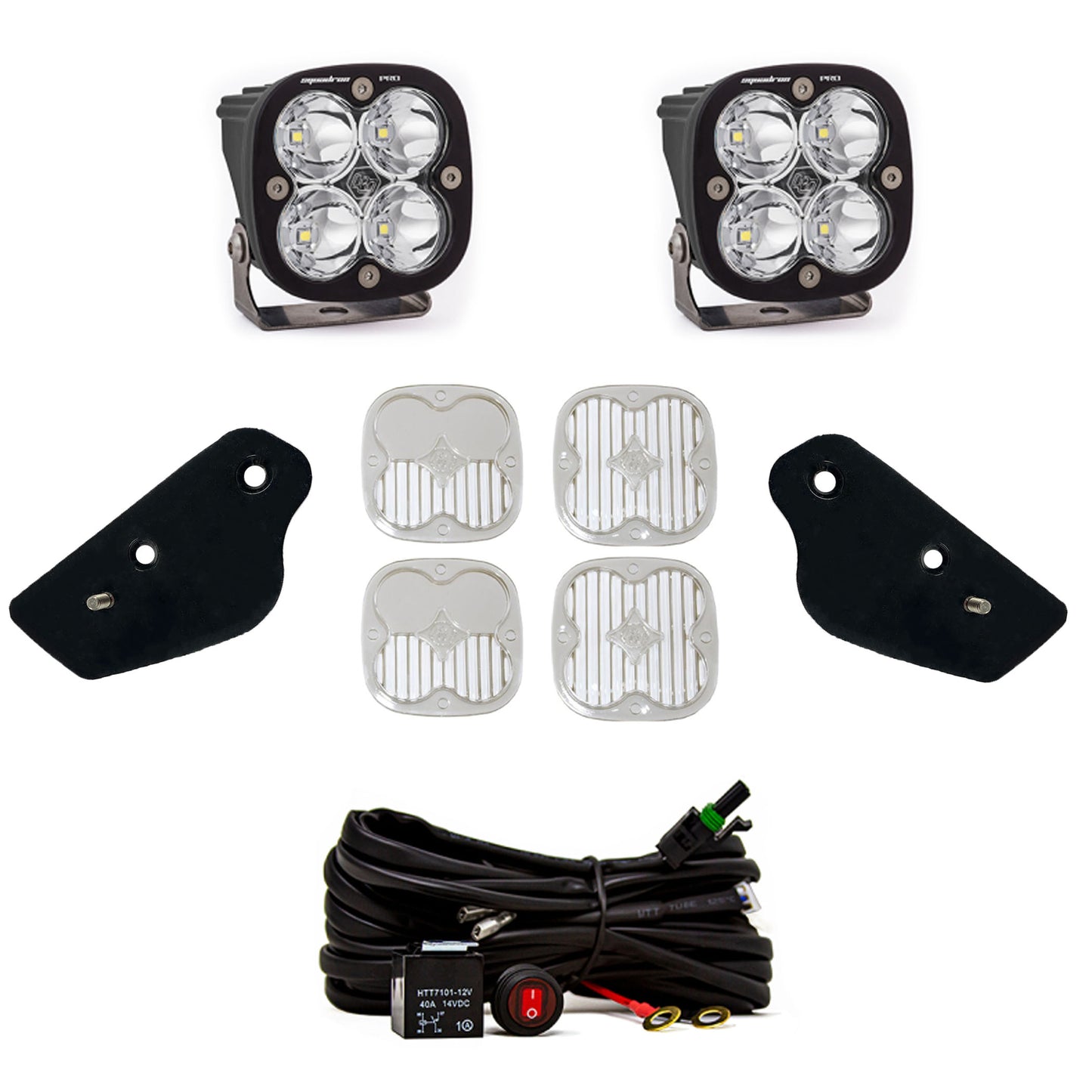

Includes:

  • Squadron Pro, Pair Sport LED
  • x2 Squadron Wide Cornering, Clear Lenses
  • x2 Squadron Driving/Combo, Clear Lenses
  • Mounting Hardware
  • Relay Harness with Red Toggle Switch



Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
