Ford, Bronco (21-On), Reverse Kits
Ford, Bronco (21-On), Reverse Kits
Description:
The S1 features the same quality, fit, and finish that is synonymous with the Baja Designs name, at an attractive price point. The S1 in wide cornering is an awesome solution for producing a wide spread of light with some distance behind your vehicle. Whether you're backing down a trail, or backing into a camp spot these lights will be sure to illuminate the task at hand. This kit includes an auxiliary light bracket, a toggle switch harness and a set of S1 series lights. If you're looking for an awesome lighting addition for your Bronco this is it!
Baja Designs Features: Satisfactions Guarantee – 30 Day Money Back Guarantee Limited Lifetime Warranty – Complete Purchase Protection uService® – Replaceable Lenses And Optics ClearView® – All The Light, Right Where You Need It. MoistureBlock™ – Waterproof, Rain Proof, Submersible CopperDrive® – Only LED Driven At 100% 5000K Daylight – Less Driver Fatigue, Natural Color |
Specifications (Per Light): Lumens: 2,375 Utilizing 1 LED Wattage/Amps: 20W / 1.45A Dimensions: 2.1" x 2.1" x 2.1" Safe Voltage Range: 9-28V Weight: 0.4 lbs LED Life Expectancy: 49,930 Hours Front Lens: Hard Coated Polycarbonate Housing: Hard Anodized & Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum Hardware & Bracket Material: Stainless Steel Exceeds MIL-STD810G (Mil-Spec Testing) Built-In Overvoltage Protection IP69K (Waterproof up to 9ft & Pressure Washable) IK10 Compliant (Mechanical Impact Testing) |
Application:
- 2021 - On Ford Bronco

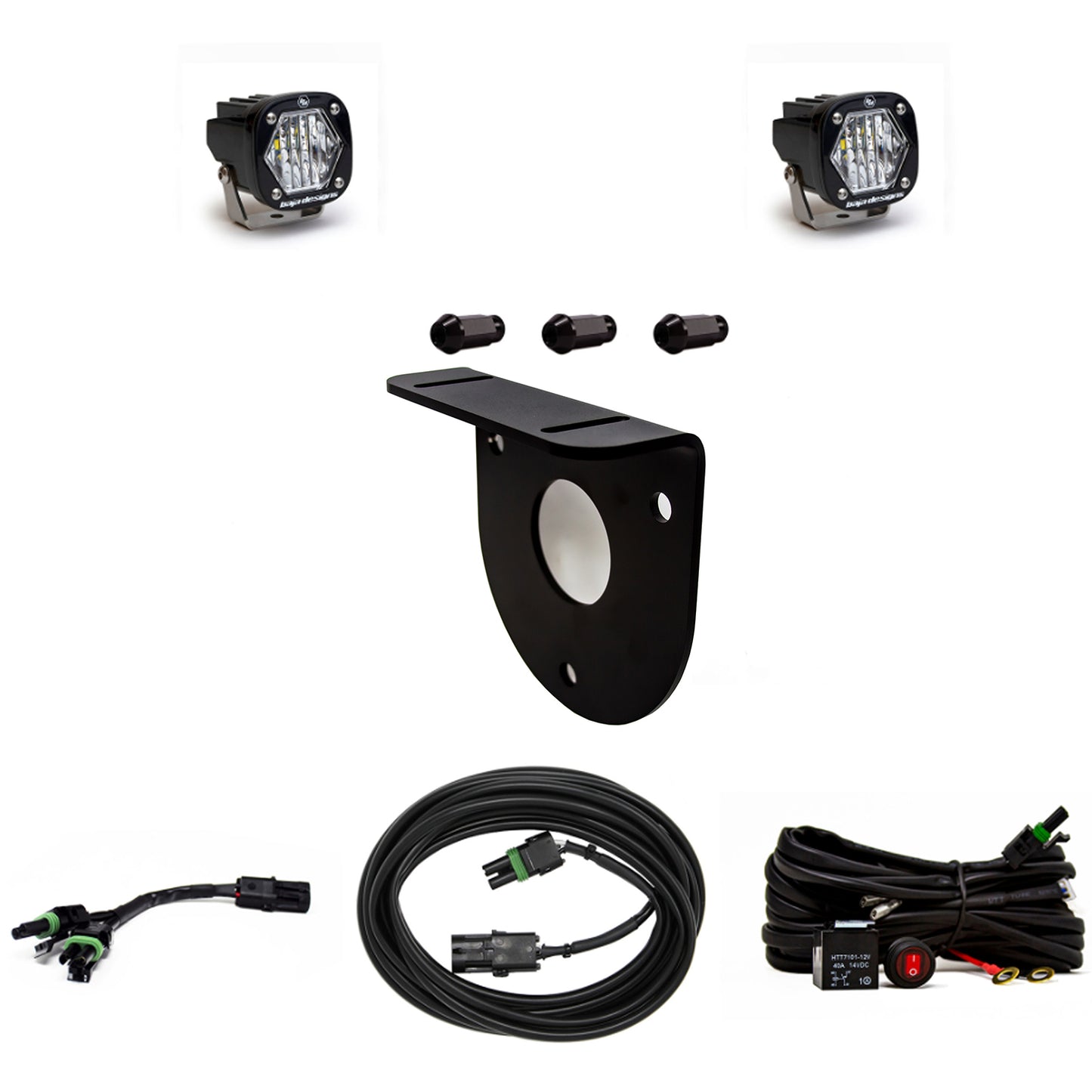

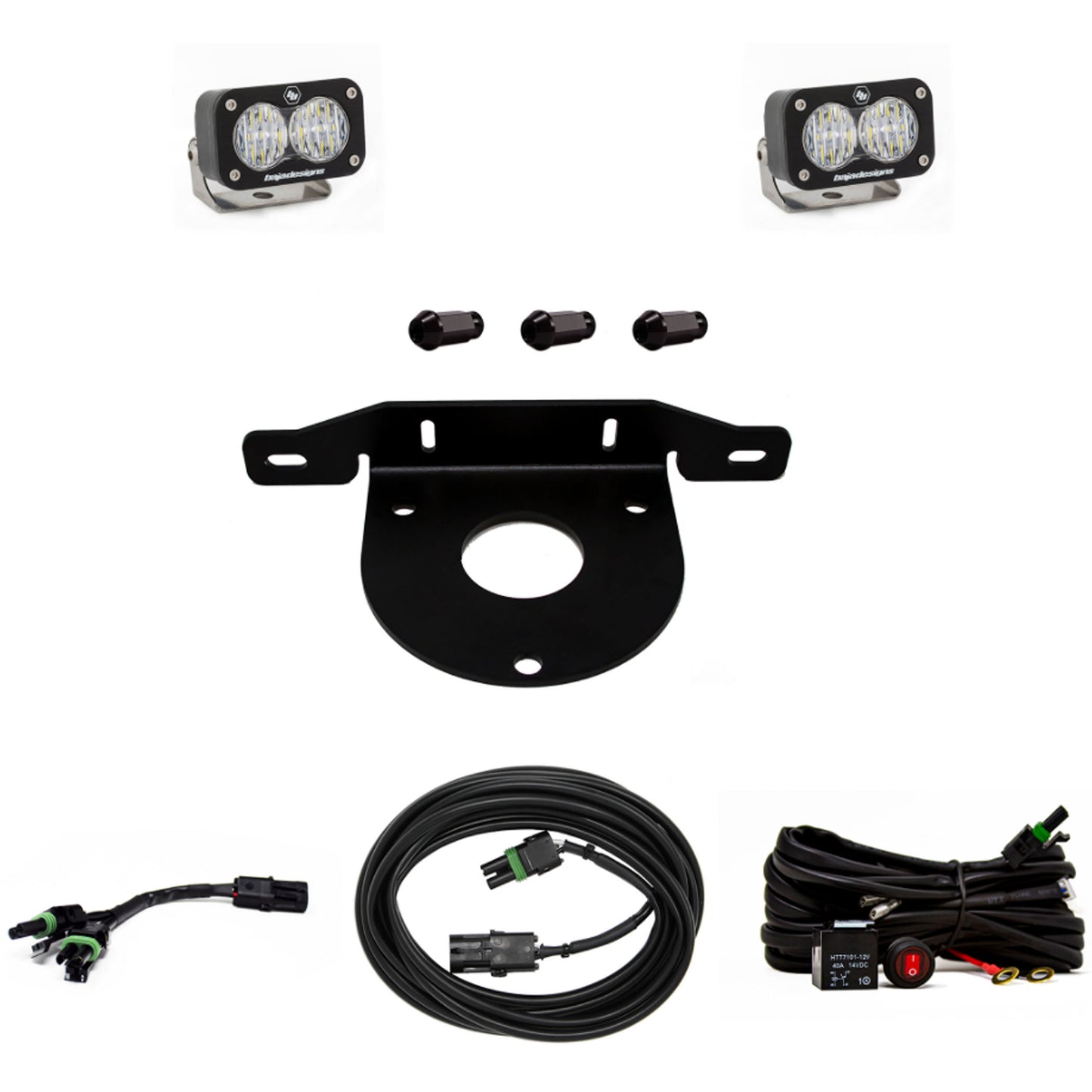

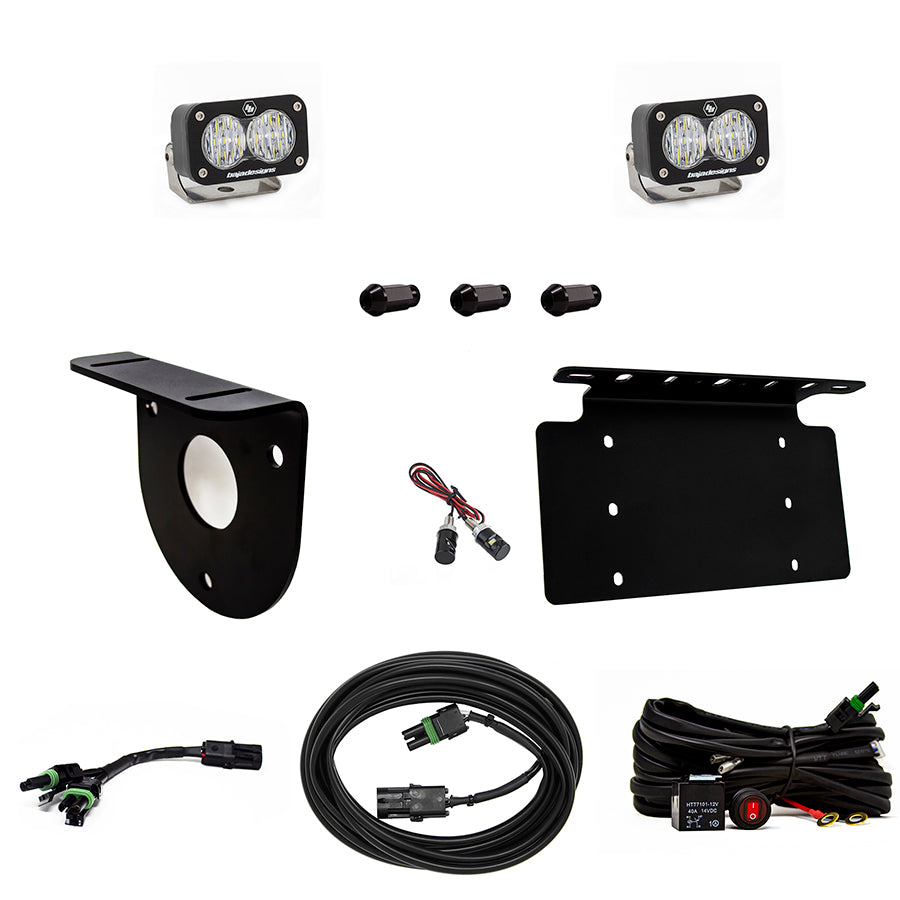

Includes:
- x2 S1, Wide Cornering LED Light
- x1 Reverse Light Bracket
- x1 Relay Harness with Toggle Switch
- x1 10ft Extensions
- X1 2-Pin Splitter
- Required Hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
