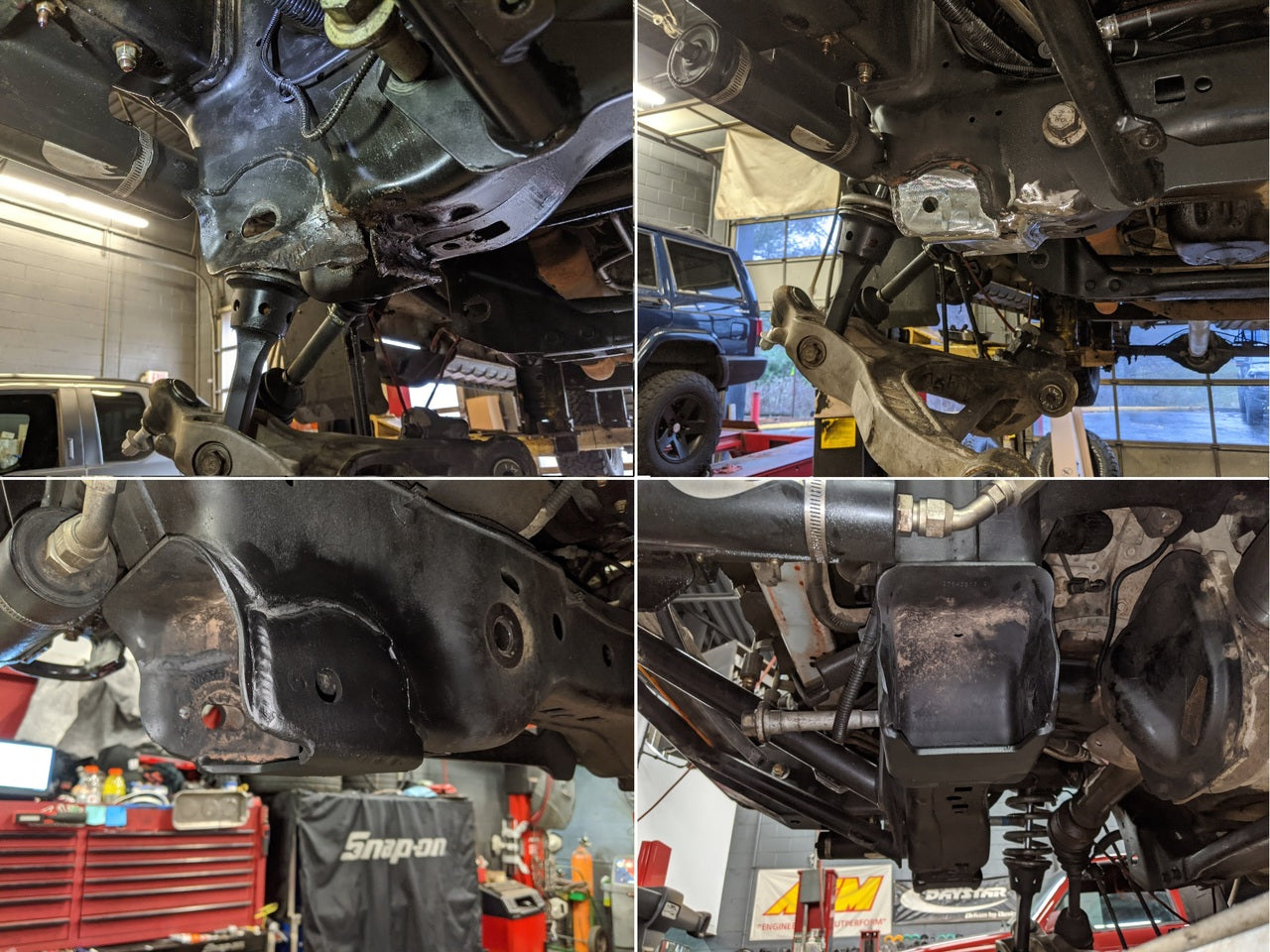

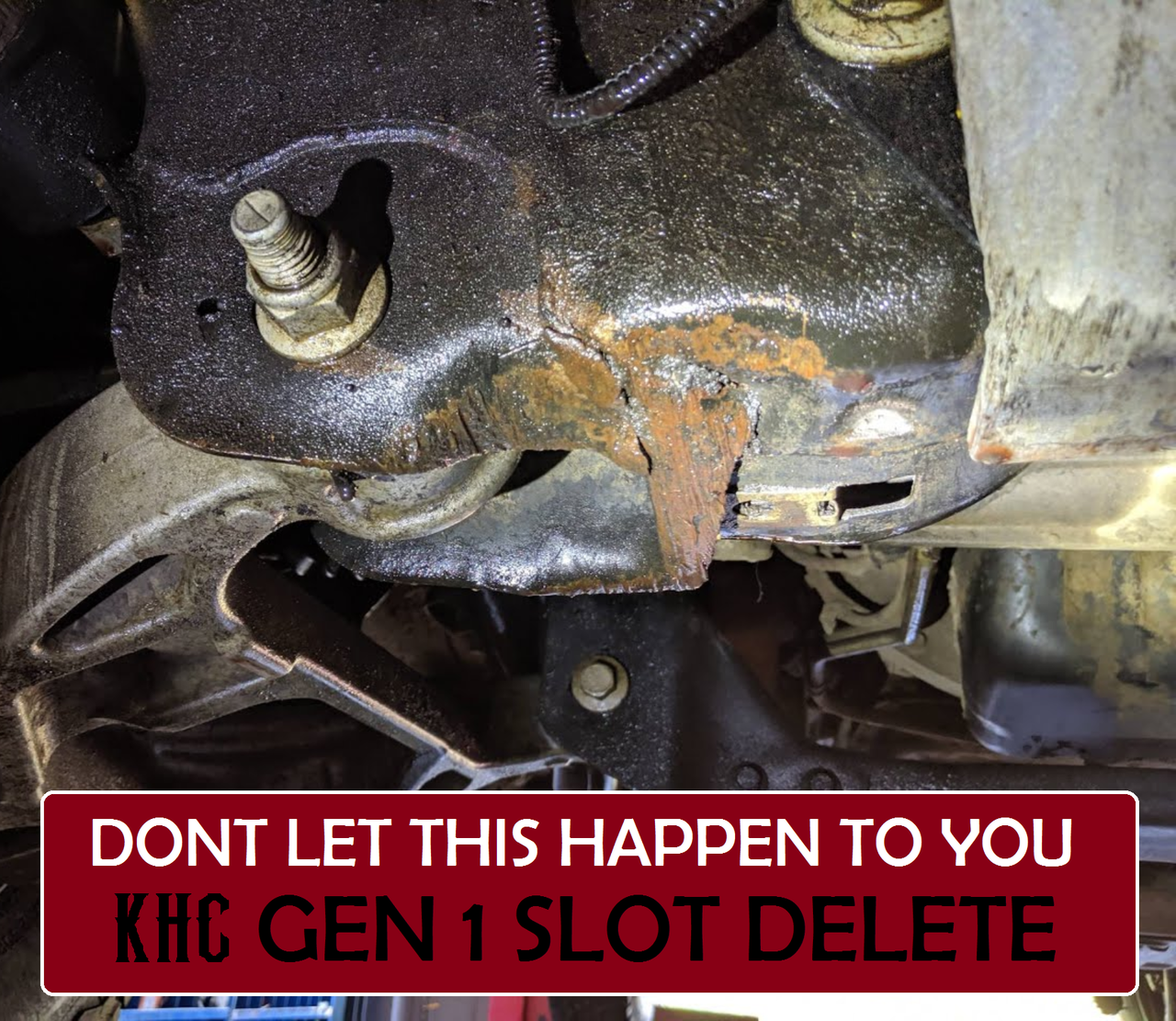

We finished up the updates on the Lower Control Arm pocket support system. I have fixed more than a few bent LCA pockets which is what inspired this kit. The rear pockets are very prone to bending on both gen1 and gen2 due to lack of support on the back of the pocket along with the stock rubber bushing deflection during a impact allowing in to easily bend the rear pocket.
These kit not only adds a support to the rear pocket but all the mounts. It also locks the lower control arms in the outer most position (recommended), center position or the holes can be slotted so you can still adjust the alignment from the lowers. ----- We highly recommend locking the lowers in place and using adjustable upper control arms if you are running offroad because when aligning Raptors from lower control arm cam bolts only it is prone to getting thrown out of alignment.------

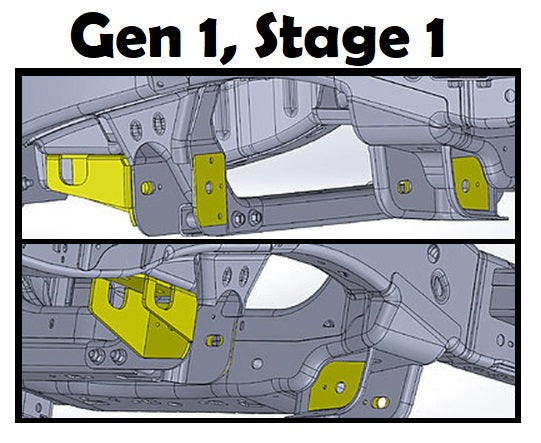

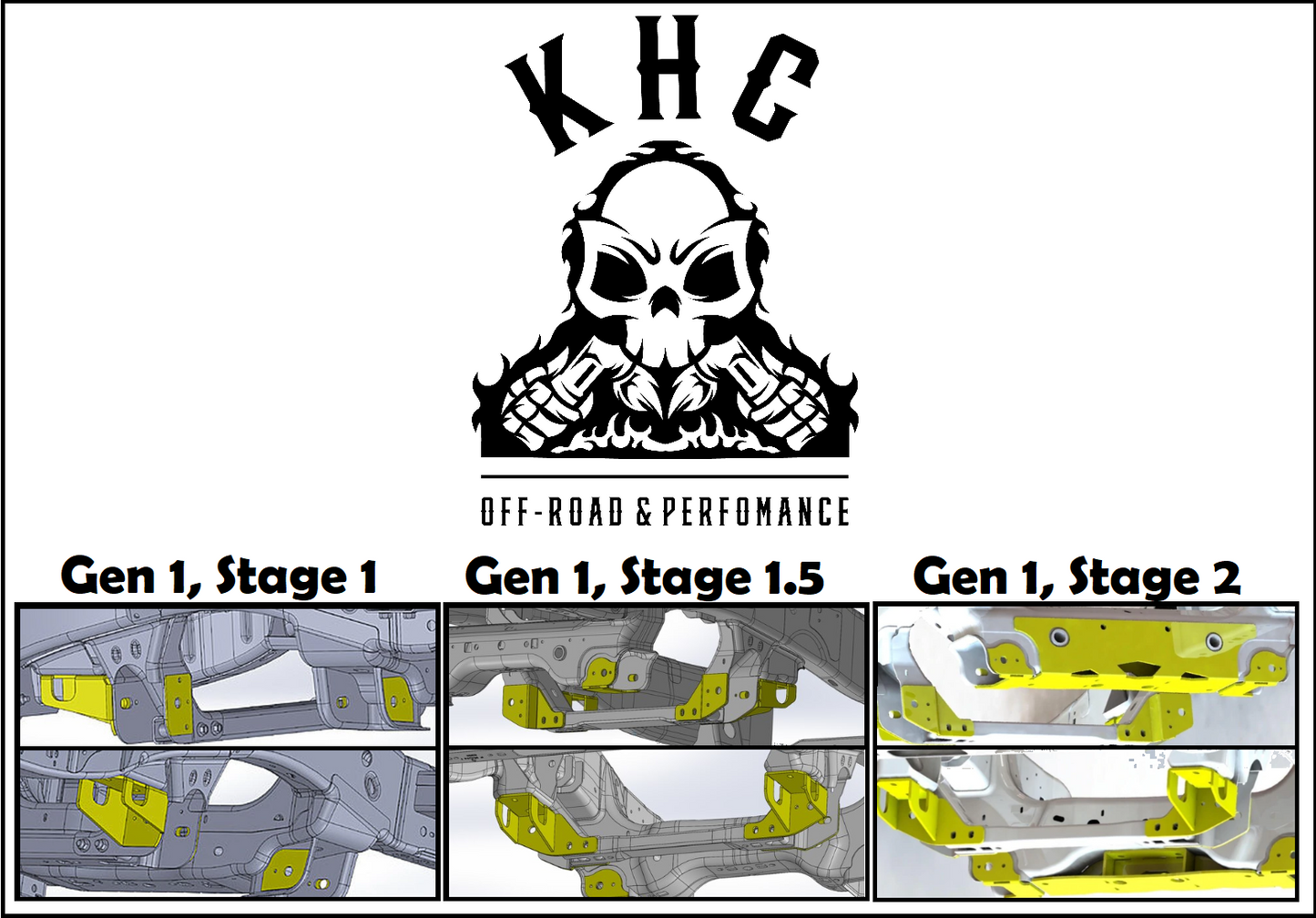

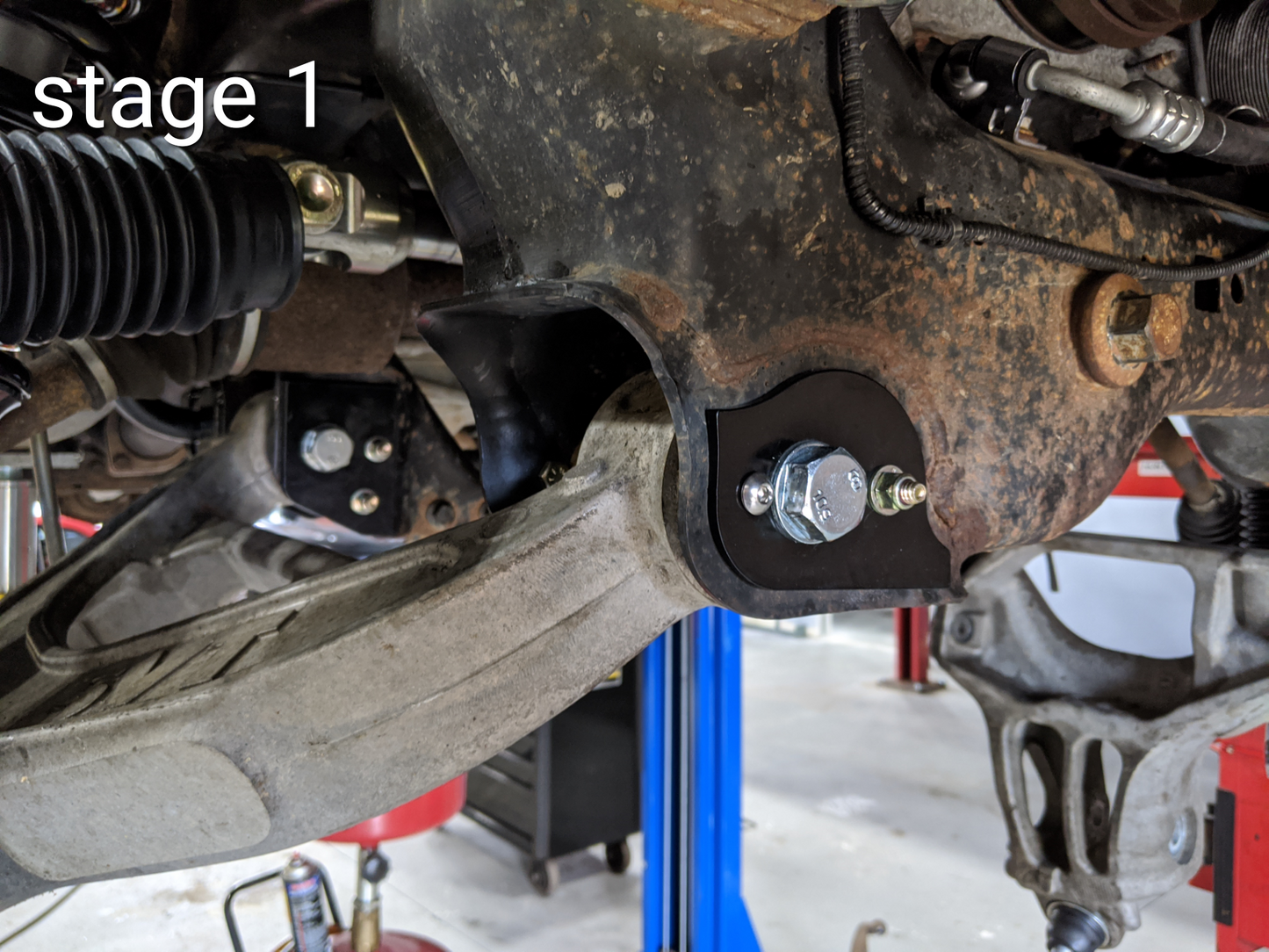

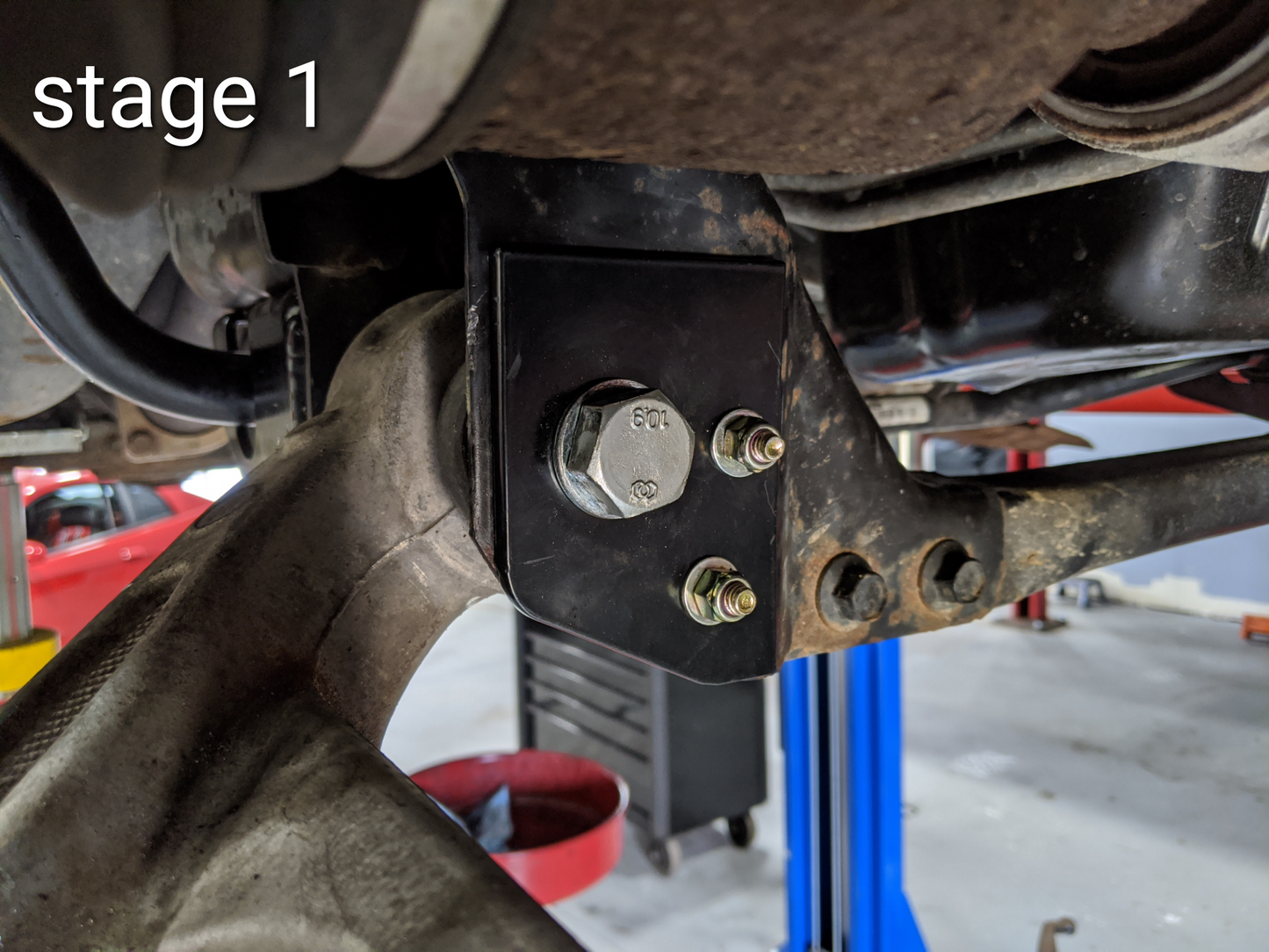

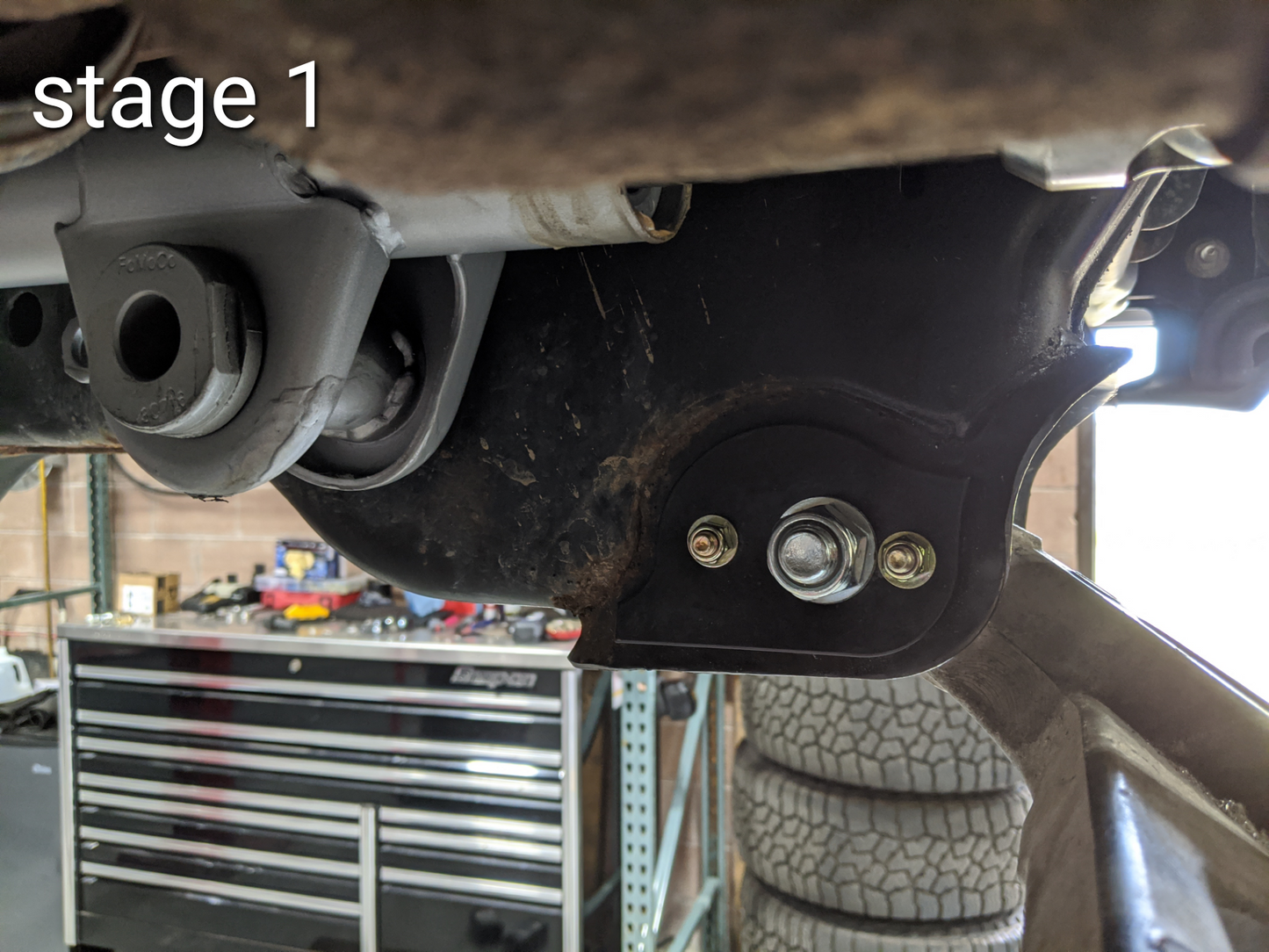

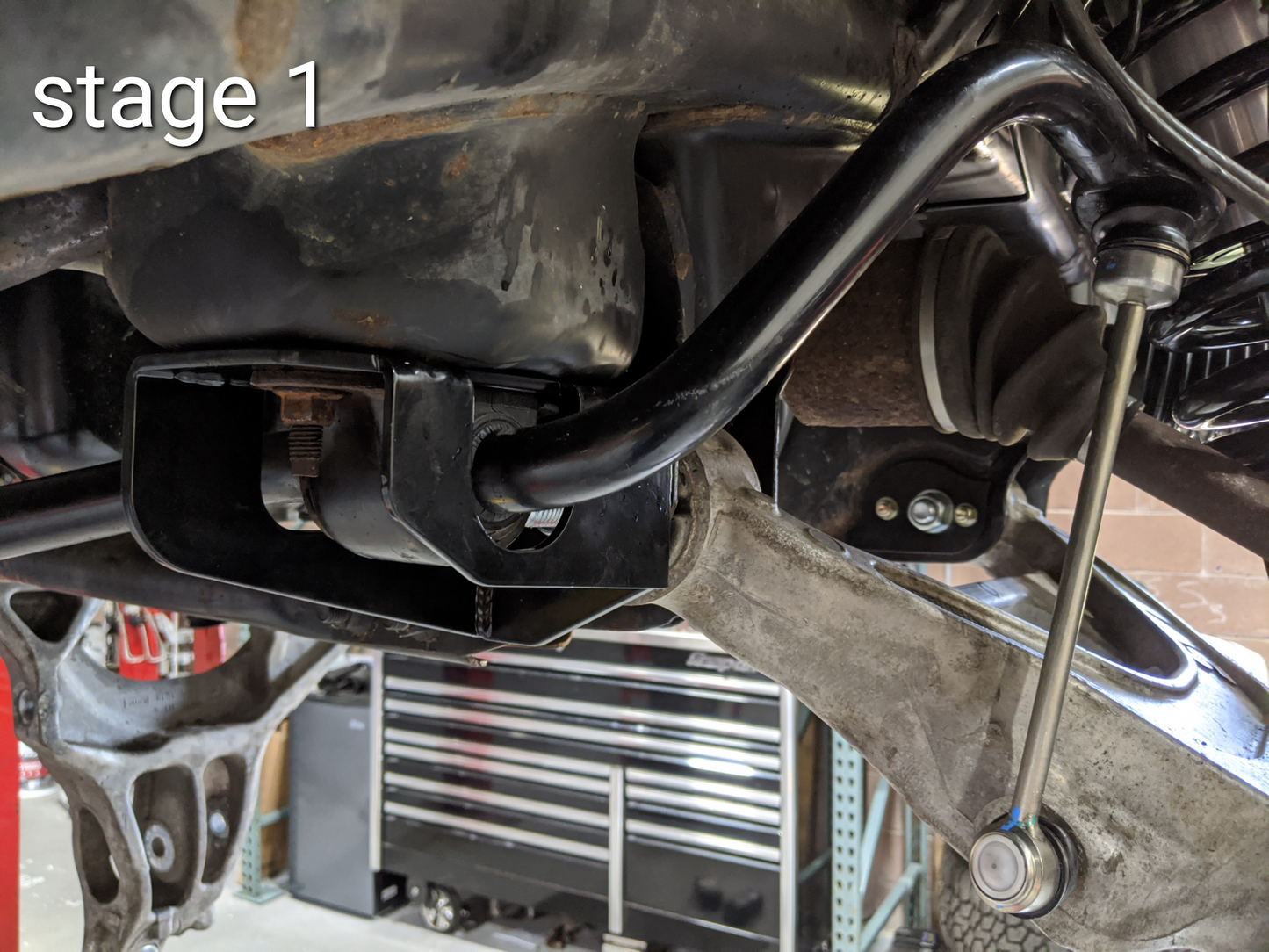

Stage 1:
- Adds support to all 4 pockets
- Full Bolt in design- (can also be welded)
- works with stock swaybar
- made from 3/16 steel plate
- Adjustable upper control arms are required for alignment
- includes all hardware

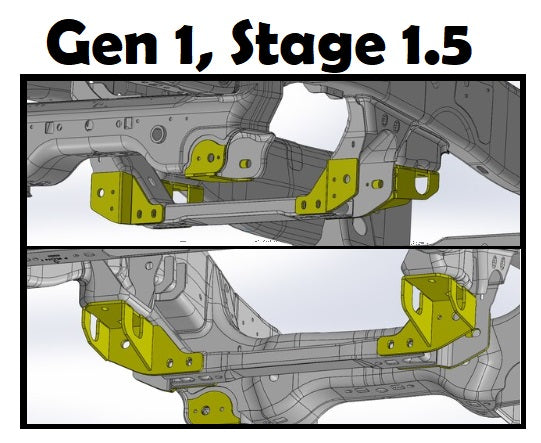

Stage 1.5
- Adds support to all 4 pockets
- Rear pockets Bolt in, Front pockets Weld in design, trimming of roll on front pockets required
- Weld in portion will not be powder coated
- Works with stock swaybar
- Made from 1/4 steel plate
- Adjustable upper control arms are required for alignment
- Includes all hardware

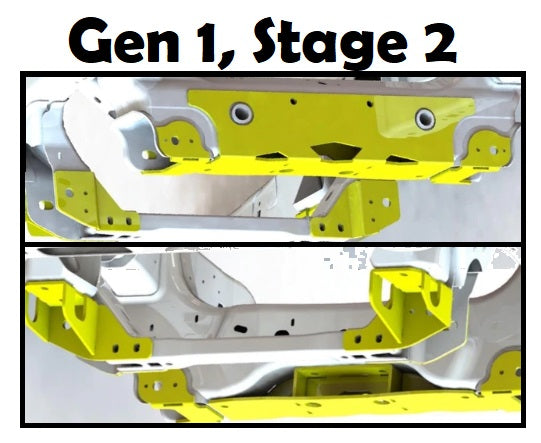

Stage 2
- Adds support to all 4 pockets and includes front cross member frame brace
- Rear pockets Bolt in, Front pockets Weld in design, trimming of roll on front pockets required
- Weld in portion will not be powder coated
- Works with stock swaybar
- Made from 1/4 steel plate
- Adjustable upper control arms are required for alignment
- Includes all hardware
Fits:
Gen 1 Raptors
Gen 12 F150s (2009-2014)
