Gen 2 Raptor Stage 2 Slot Delete Kit
Gen 2 Raptor Stage 2 Slot Delete Kit

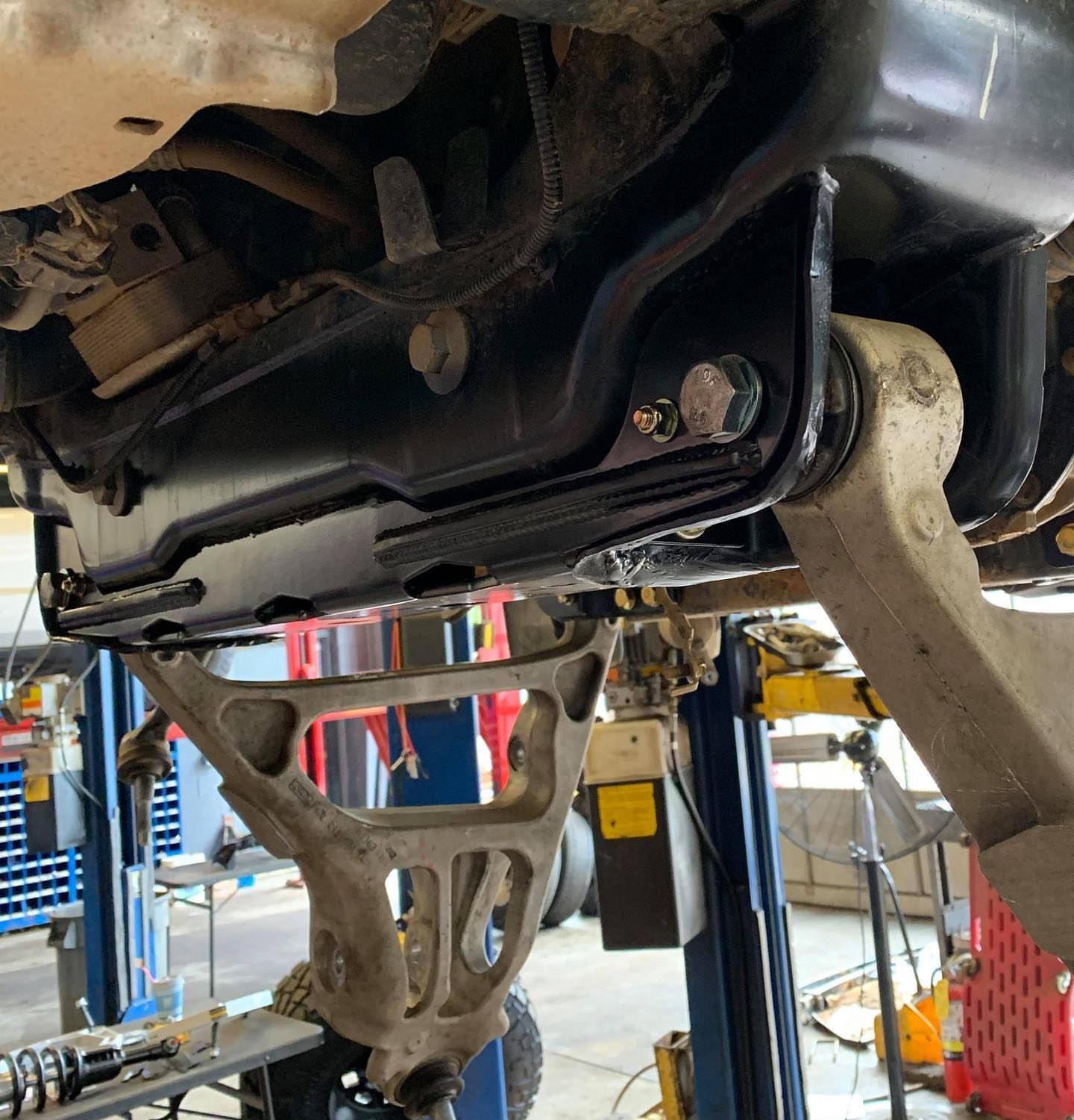

THIS GEN 2, STAGE 2 SLOT DELETE / SUPPORT IS DESIGNED TO LOWER THE CENTER OF THE RACK AND PINION FRAME CROSS MEMBER TO THE CONTROL ARM POCKET HEIGHT. THIS WILL HELP PREVENT THE CONTROL ARM POCKETS FROM BOTTOMING OUT AND GETTING DAMAGED. AND SIMILAR TO OUR STAGE ONE BOLT ON KIT, IT REMOVES THE CHANCE OF THE LOWER CONTROL ARMS SHIFTING WHEN RUNNING ADJUSTABLE UPPER CONTROL ARMS. THE REAR POCKET SUPPORT IS SIMILAR TO OUR STAGE 1 KIT WITH ADDED SUPPORT NOT ONLY BOLTING TO THE POCKET, AND SWAY BAR MOUNTING SURFACE, BUT USES THE INWARD TWO BOLTS FOR THE REMOVABLE CROSS MEMBER. THE SYSTEM IS FULLY BOLT ON AND COMES WITH ALL REQUIRED INSTALLATION HARDWARE,
The stage 2 kit was specifically designed to work with a special elongated KHC Frame cut bumper center section but should work with most bumper skids with possible modification
*adjustable upper control arms are required
Product is powder coated black by default, if a special color is requested please contact the shop @ 732-951-9111
