GJ Motorsports 3rd Brake Light - 2010-2014 F150 Raptor

GJ Motorsports 3rd Brake Light - 2010-2014 F150 Raptor

Regular price $399.99 USD
Regular price Sale price $399.99 USD
Sale Sold out
Shipping calculated at checkout.
Wiring Harness (by LVJ Motorsports)
NMO Mount
Y-Splitter by LVJ Motorsports

Overview

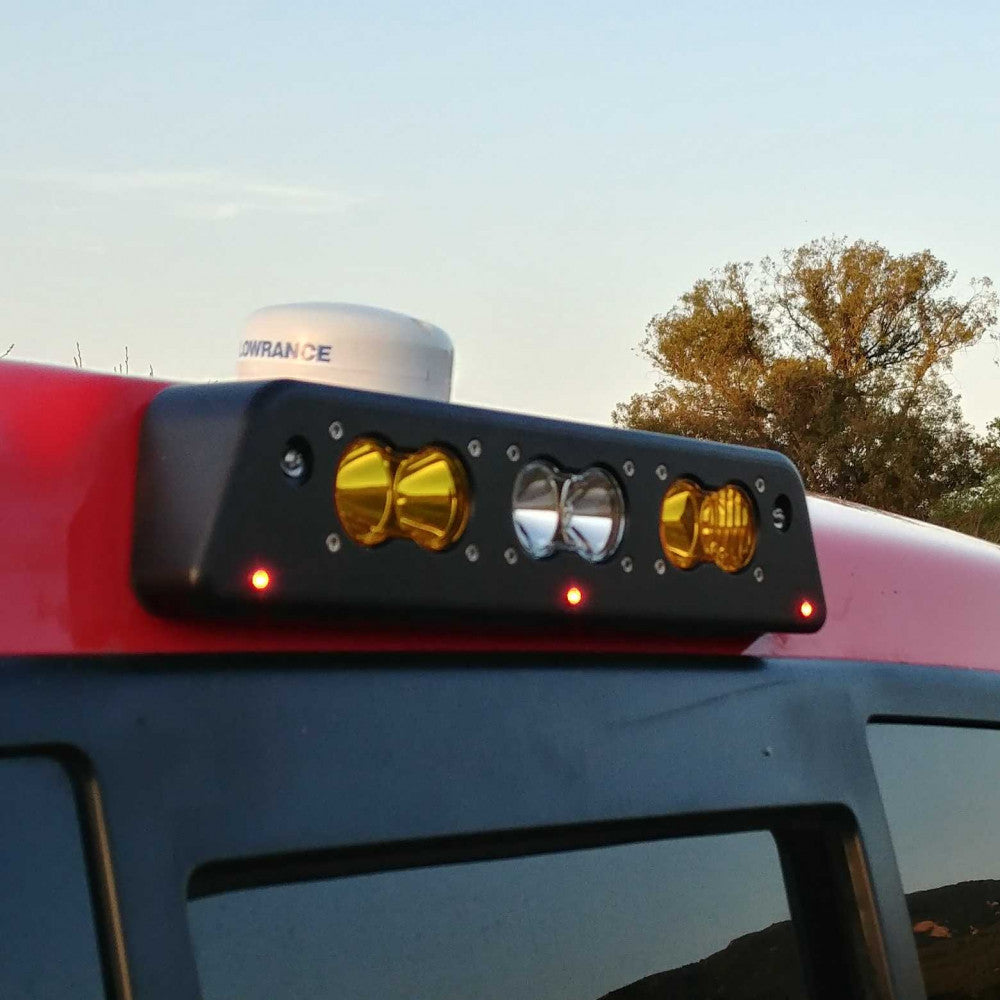

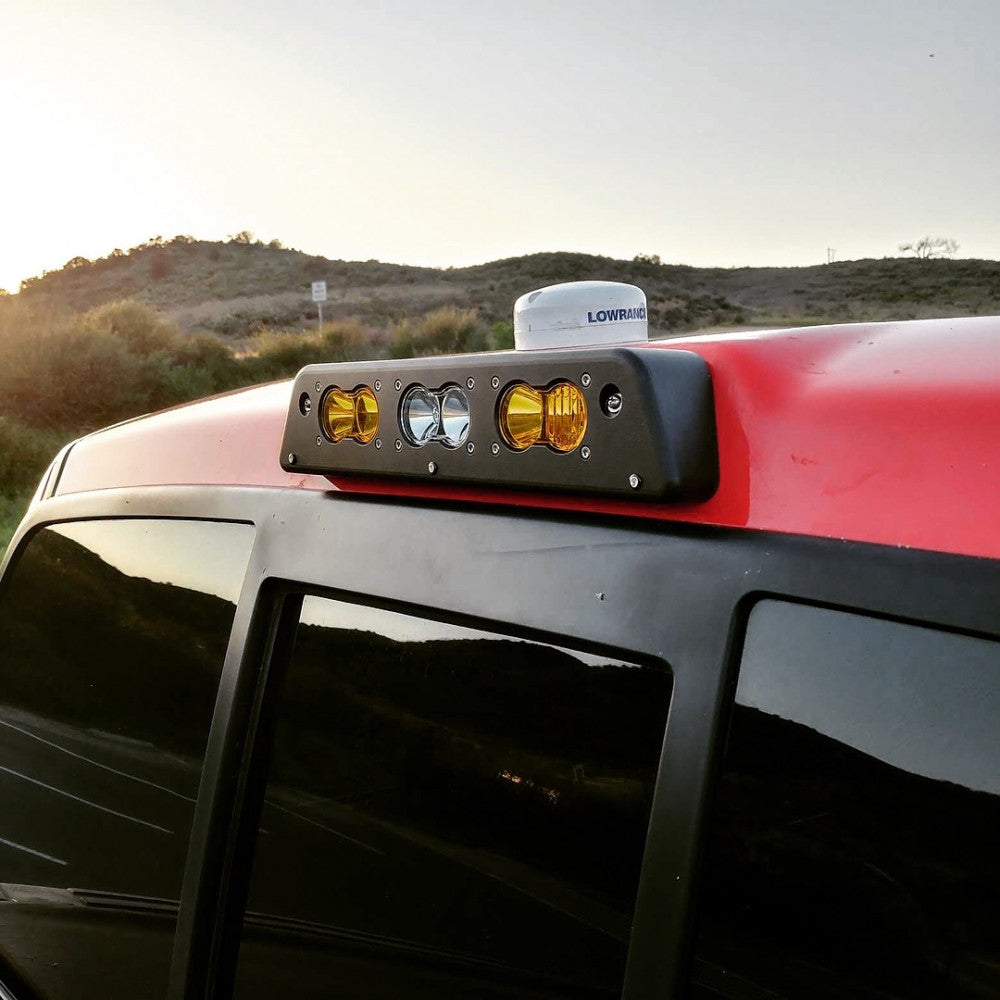

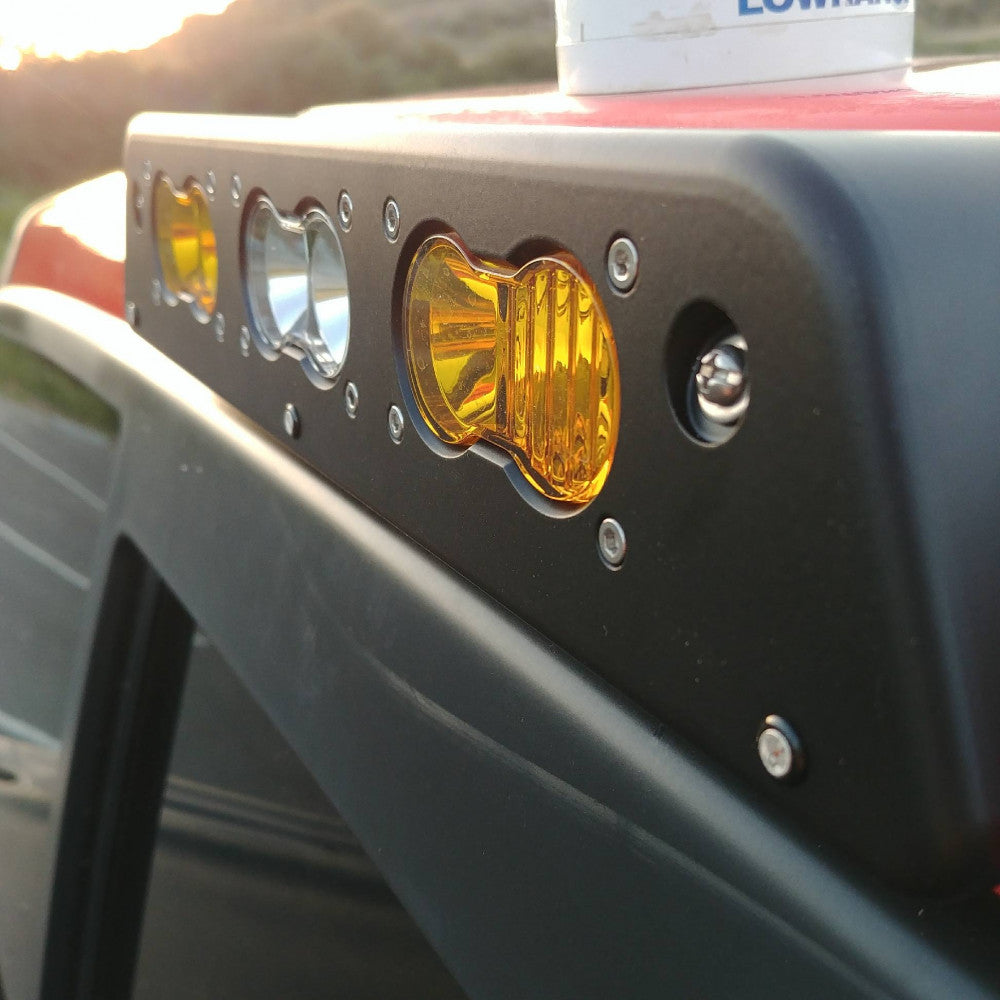

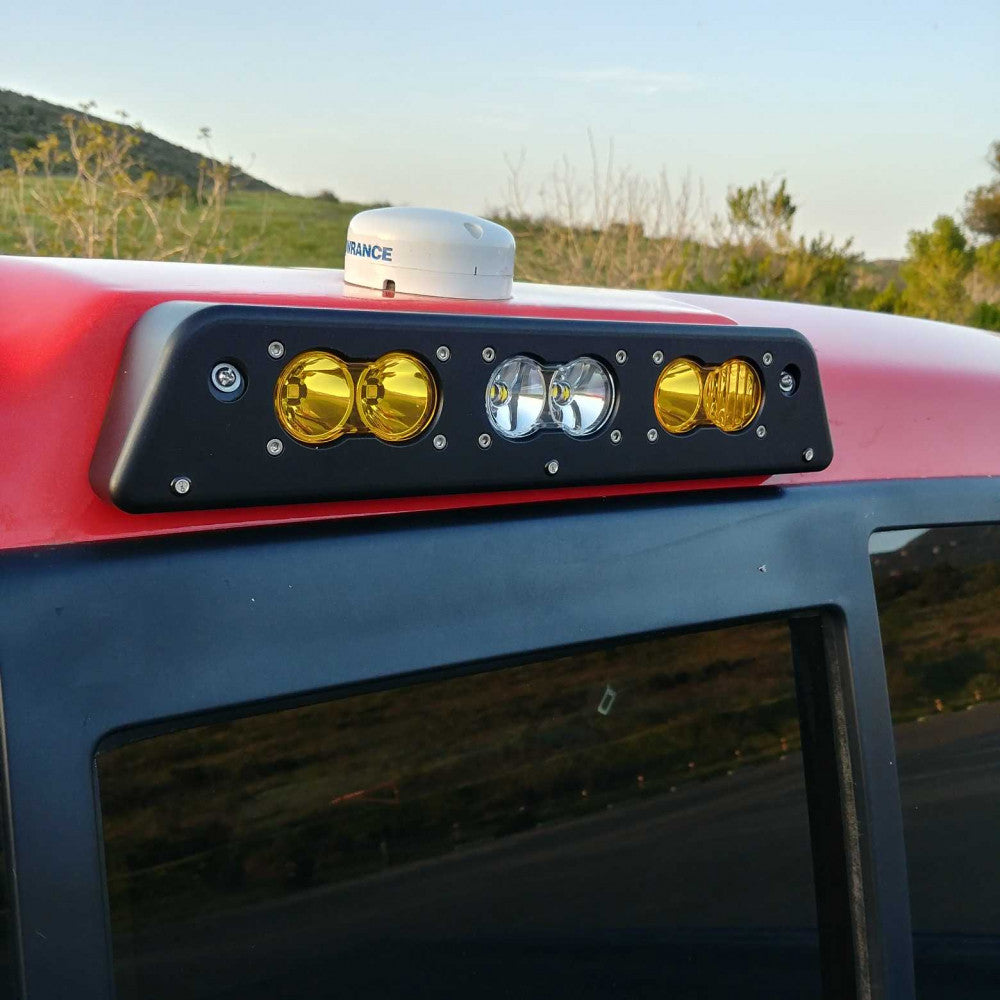

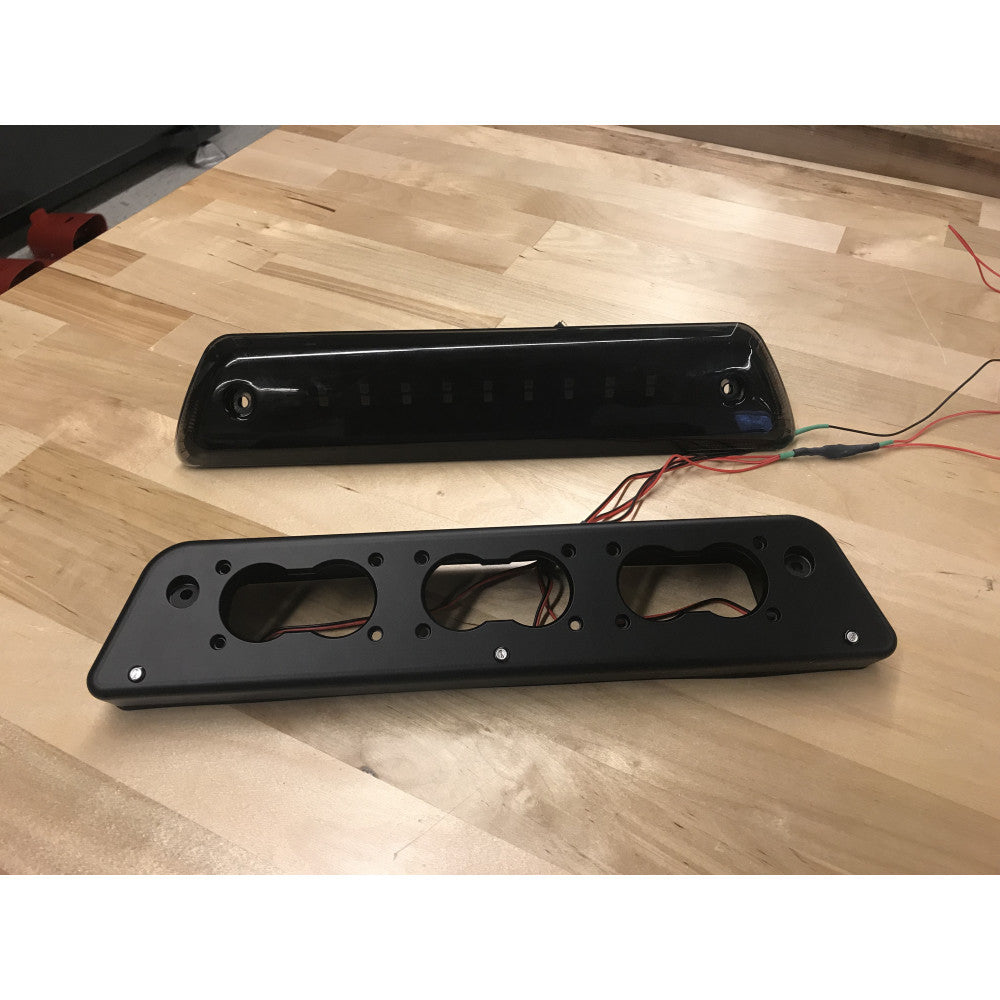

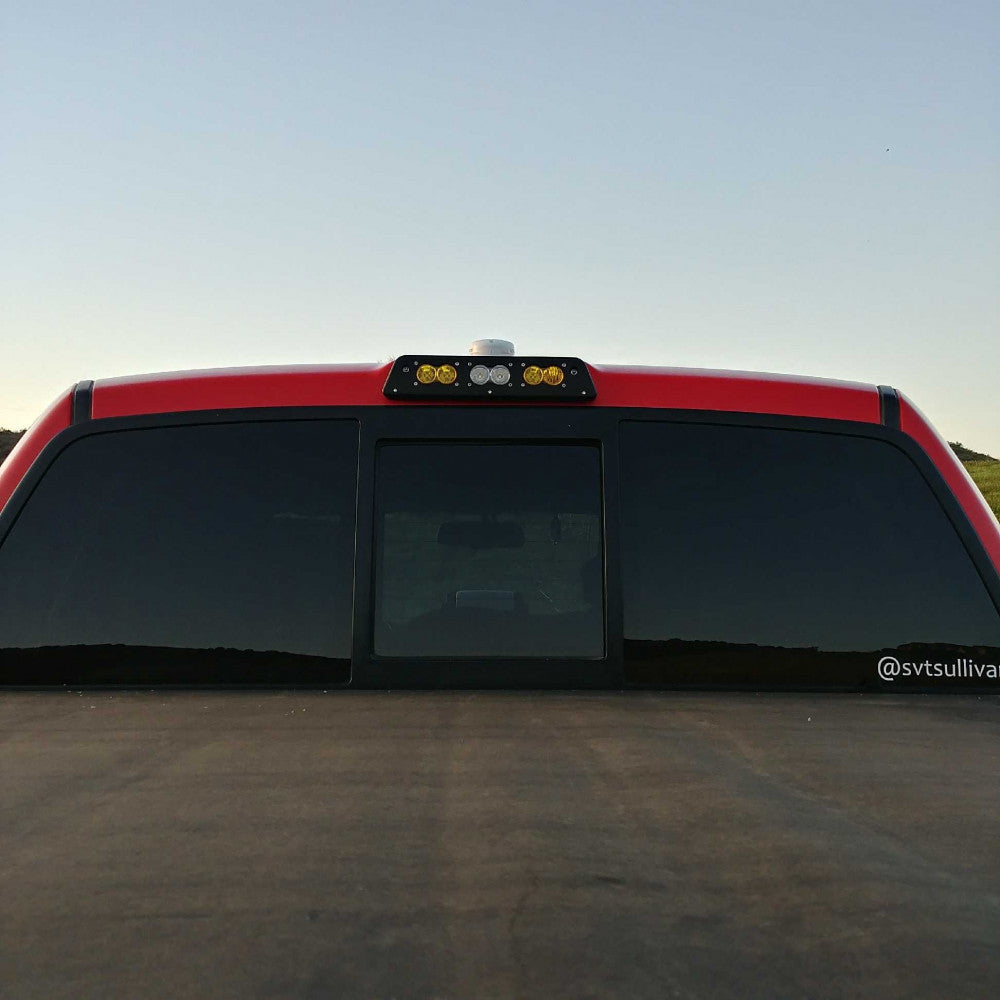

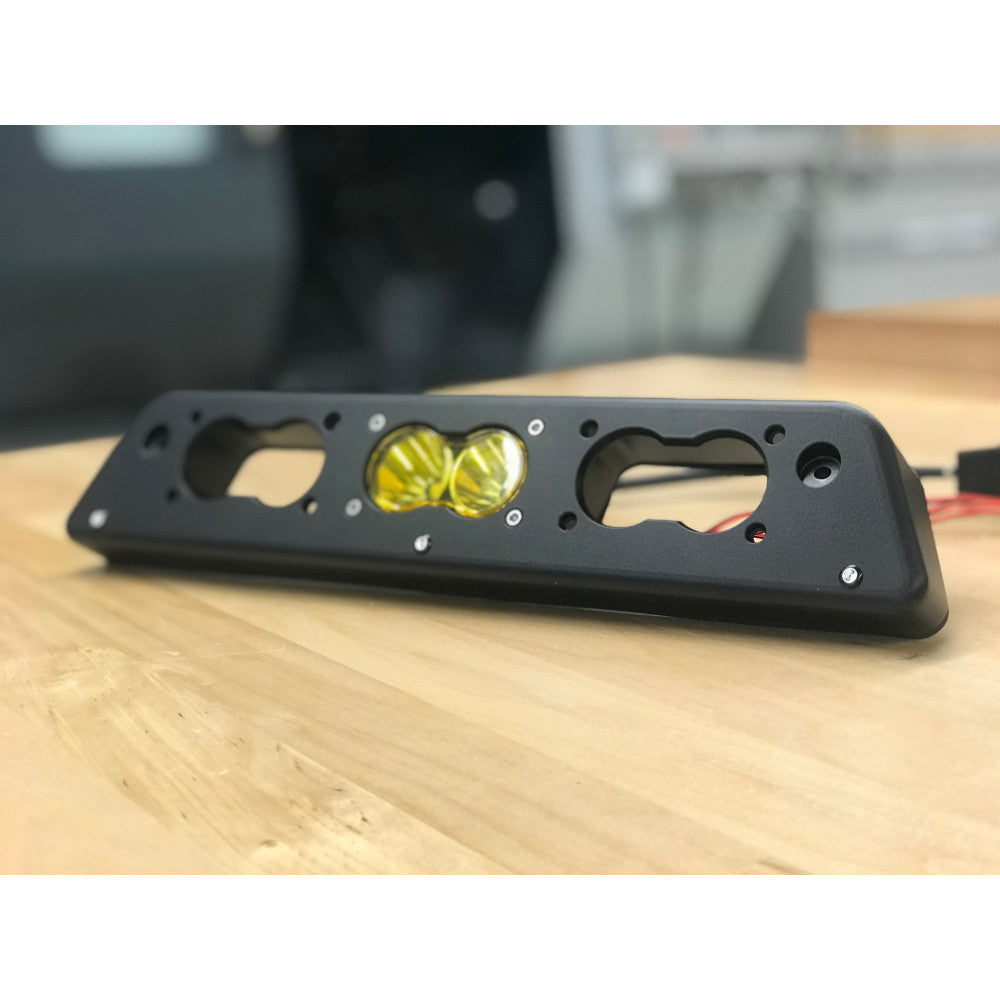

Our billet aluminium 3rd brake light for the 2010-2014 Ford F-150 Raptor is the first light to market that allows for installation of 3 Baja Designs S2 lights and retains the factory styling of the light.

  • CNC Machined from billet 6061 Aluminium
  • Uses factory bolt holes
  • Integrated gasket to seal the light enclosure to the cab
  • Plug and play integration with the factory wiring for brake, marker and cargo lights
  • Wiring harness included as standard
  • No drill installation, uses factory mounting holes

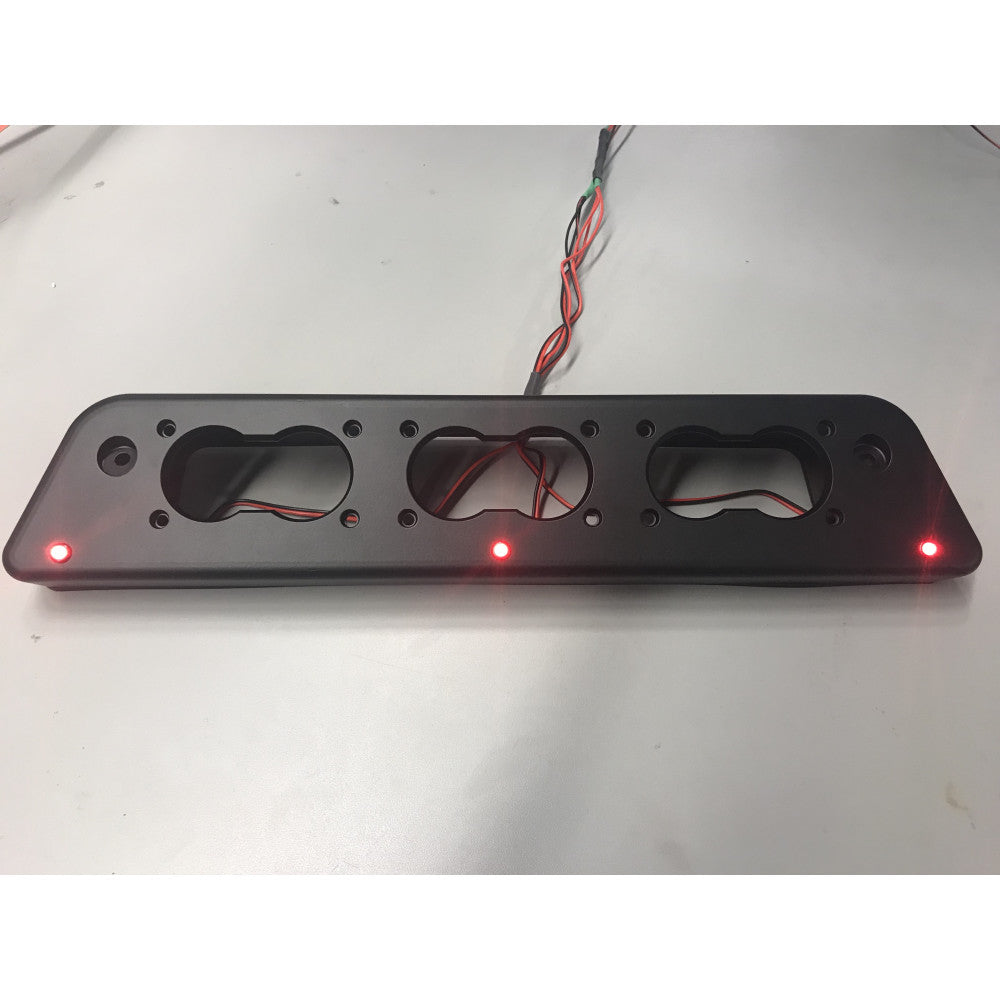

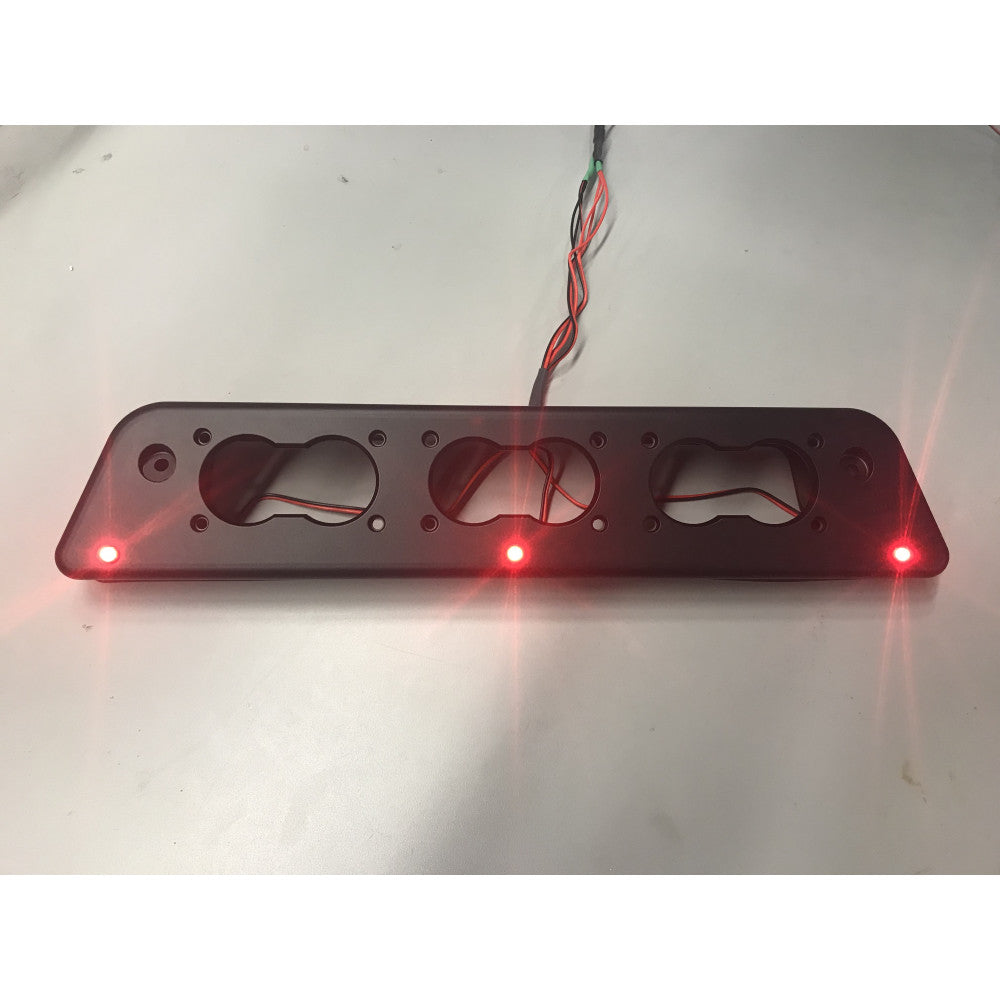

  • Three 1W Red LED marker and brake lights



Antenna Mount

The antenna mount option adds a standard brass NMO antenna mount to the top of the housing,  The mount includes 17ft of RG58 cable terminated with a PL-269 connector ready to plug straight into your radio. Please note the base of the antenna mount is not powder coated it is raw brass.  We recommend the following antenna and cap for the anm mount:


Wiring Harness Options


All wiring harnesses are cut to length and pre-terminated with weatherpack connectors and wrapped in soft loom for easy installation in your truck.  The factory integration for the marker lights and cargo light uses the factory connector and does not require any cutting or soldering.


BASIC HARNESS

This harness provides integration of the 3 marker/brake light LED's with factory wiring harness as well as connecting the center light to the cargo light circuit.  Two additional circuits are provided to connect the outer lights to the factory upfitter switches in the passenger kick panel.


REVERSE LIGHT HARNESS

This harness has all the features of the basic harness, but also connects the center light to the reverse light circuit so that it comes on automatically when the truck is placed in reverse.


STOP/TAIL/TURN HARNESS WITH REVERSE

This harness includes a stop/tail/turn controller to integrate the outer to lights with the factory brake/turn signals and also connects the center light to the reverse light circuit so that it comes on automatically when the truck is placed in reverse. It includes inputs for connecting to your aux switches for:

  • Master power to turn the system on/off
  • Strobe Function
  • Strobe pattern change (momentary switch to be optionally mounted in the dash)
  • Constant on override to disable the turn/brake integration


Y SPLITTER - 2 WAY

This allows you to connect two lights to the same aux switch with a pre-terminated Y cable. This cable is terminated with weatherpack connectors and is plug and play.



*product lead time is based off GJ Motorsports inventory
