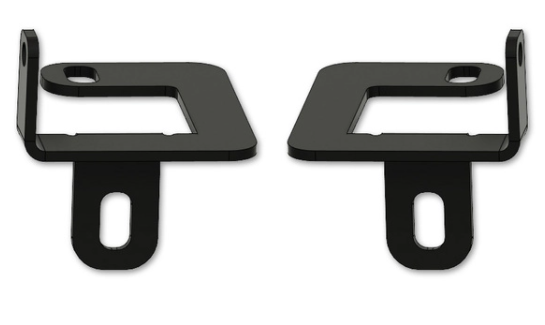

Looking for a way to mount your favorite 30" Slim Light Bar to the front of your new Bronco? Then these KR Off-Road mounts are what you're looking for. Designed to work with or without the factory Safari Bar, these brackets utilize existing mounting points on your HD Modular Bumper.
Light Bar Add-On: Add on a Baja Designs S8 or Diode Dynamics Stage Series Light Bar to make your kit complete. Each complete kit includes a pair of brackets, a light bar of your choice and a wiring harness to connect the light bar to your factory overhead upfitter switches. Rigid Industries Bars include a toggle switch harness, which can be cut to utilize with the factory upfitter switches. Note: Due to supply chain issues, Baja Designs 30" S8 bars may experience a 2-3 month lead time.
NOTE: The HD Modular Bumper uses a Torx Plus 40 (TP40) socket. Please do not use a Torx 40 (T40) socket (you could strip your bolts). Ford did not provide this bit in your tool set. They only provided a TP30 and TP50 bit. If you'd like to add-on a TP40 bit please click here.
Baja Designs 30" S8 Light Bar
Lumens: 19,050 Utilizing 24 Cree LEDs
Wattage/Amps: 180W / 12A
Dimensions: 30” x 3” x 1.6”
Note: The Amber output of the Baja Designs bar is a yellow output despite the name.
Diode Dynamics 30" Stage Series Light Bar
Lumens: 11,400 (5,700 for Amber)
Wattage/Amps: 137.2 / 9.8A
Dimensions: 31” x 3” x 1.63”

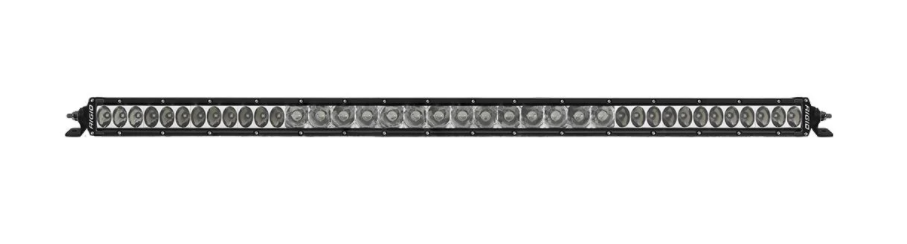

Rigid Industries 30" SR Series Light Bar
Wattage/Amps: 160 / 11.43A
Dimensions: 33" x 1.125"
|Color:||Blue, Purple, White|
