Baja Designs

Ram TRX (21-On), 20” S8 Grill Kit

Ram TRX (21-On), 20” S8 Grill Kit

Regular price $999.95 USD
Regular price Sale price $999.95 USD
Sale Sold out
Shipping calculated at checkout.

Description:

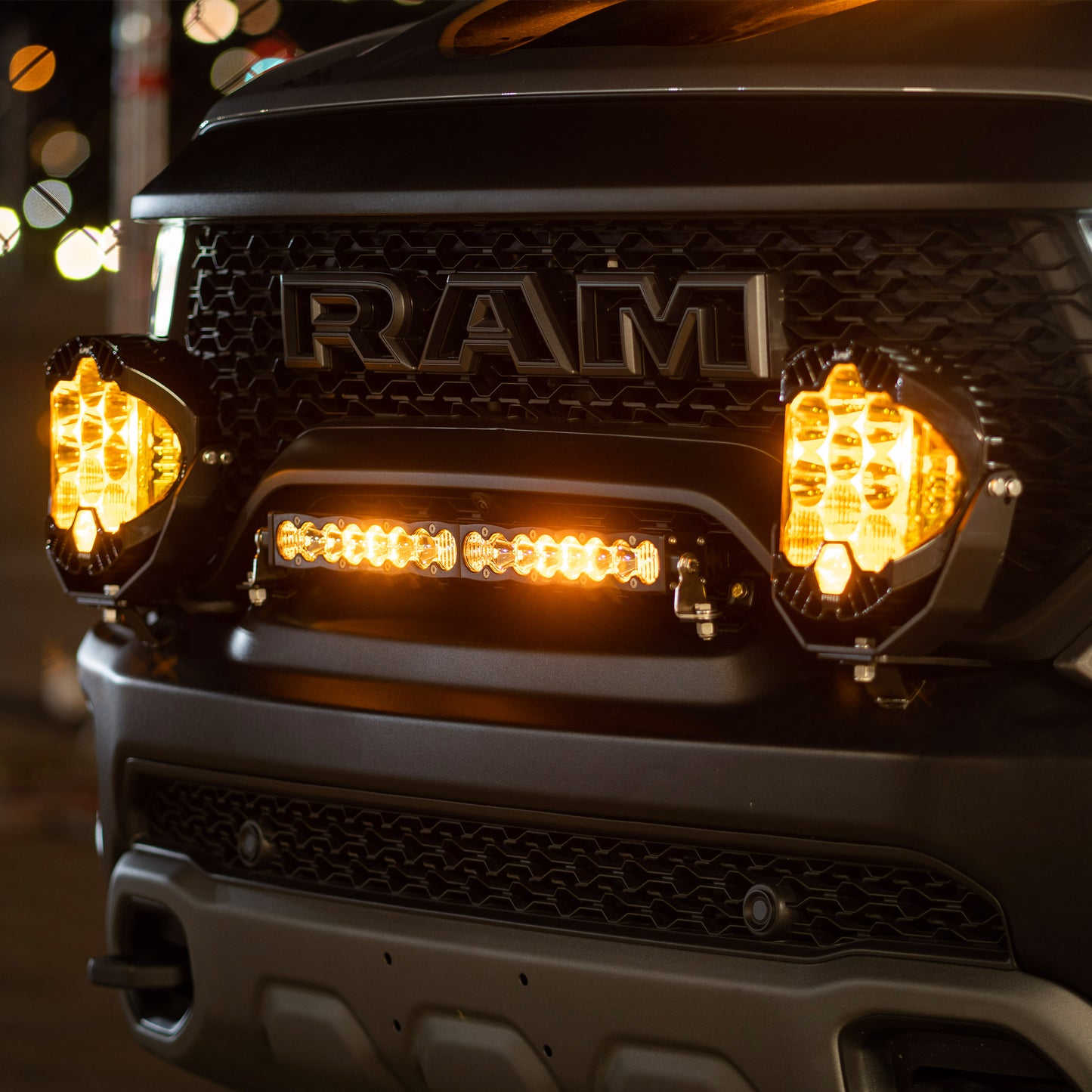

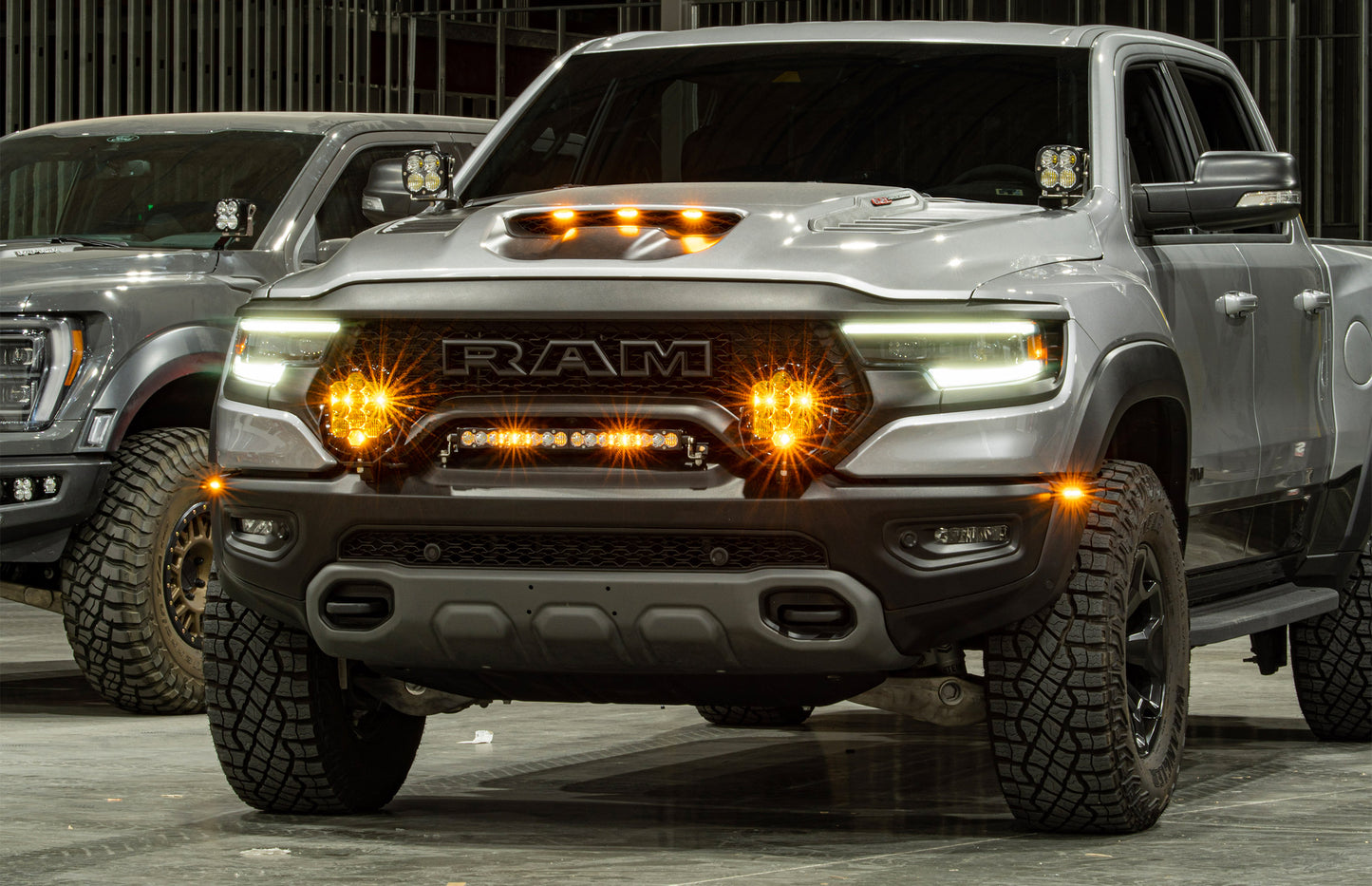

Our Dodge, Ram TRX S8 Grille kit was designed specifically to keep a low profile while allowing for maximum performance. The kit includes mounts that fit into factory locations without cutting or trimming and includes both the wiring and a 20" S8 Driving / Combo for an easy install. With the S8 you will be able to utilize it's back lit feature giving a differentiating look from other trucks!



Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
Lumens: 12,700 Utilizing 16 Cree LEDs
Wattage/Amps:  120W / 8.00A
Dimensions: 20” x 3” x 1.6”
Weight: 4.5 lbs
LED Life Expectancy: 49,930 Hours
Front Lens:  Hard Coated Polycarbonate
Housing:  Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

(S8 Patent D780,964)



Application:

  • 2021 Dodge Ram, TRX

 ATTENTION: This kit will partially obstruct the view of the forward-facing camera.

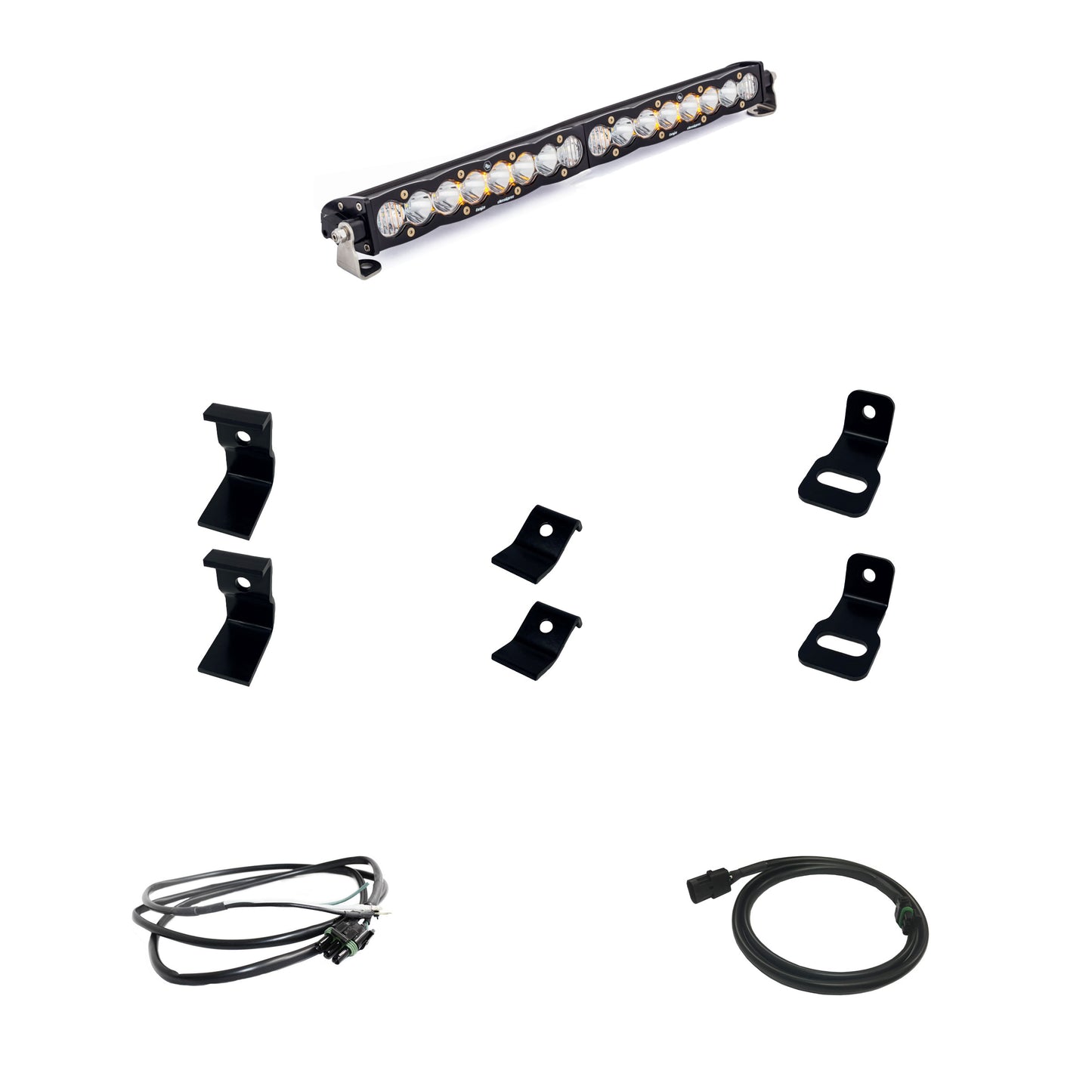

Included:

  • x1 S8 20" in Driving Combo
  • x4 Mounting Brackets
  • x1 Upfitter Harness
  • x1 5' Wiring Harness Extension
  • All necessary hardware



Patterns:

 Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (8°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
