SP-9100 8 Switch Panel Power System

PRODUCT OVERVIEW:

Putting an end to dashboard clutter is easy, with the Switch-Pro 9100 Switch Panel Power System. Featuring eight user-programmable switches, this compact panel is the most advanced and versatile on the market. Compatible with iPhone and Android based Smart Phones, you can command your vehicle accessories with the touch of your handset screen.

Features:

• Eight user-programmable switches
• Four 35A circuits and four 18A circuits, with over-current and short circuit protection
• Waterproof, Solid State 125A Power Module
• RGB Backlighting provides unlimited color options, using Color Picker on App
• Daisy Chain up to 3 Switch Panels to One Power Module

Switches can be programmed for:

• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Memory Function
• Master Mode, with ability to turn multiple outputs On AND Off with one touch
• Automatic Power-Up upon vehicle start up
• Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
• Sleep Mode for minimal power consumption
• Color Coded Output wires
• 100 User-selectable switch legends
• LED Input Status Indicators for easy troubleshooting
• Time Delay Off function available for all circuits
• Splash proof switch panel with Polycarbonate overlay faceplate
• Program and control the system from switch panel pad or smart phone
• Bluetooth interface with FREE Apple or Android App
• Battery Voltage Readout on App screen
• No Fuses or Bulky Relay box
• Built-In Bluetooth Module

Switch Panel Specs:

• RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
• Built-In Bezel Style Switch Panel enclosure measures 4 L x 2 W x .375 H ; includes concealed mounting hardware for factory-look installation
• Orange LED switch indicators
• 100 User-Selectable Legends

 Power Module Specs:

• 8 Outputs: 4 rated @ 35A, 4 rated @ 18A
• 125A maximum rating
• Waterproof and Solid State
• 6L x 3W x .5H (excluding connectors)
• LED Input Status Indicators for easy troubleshooting
• Underhood rated 125°C to -40°C

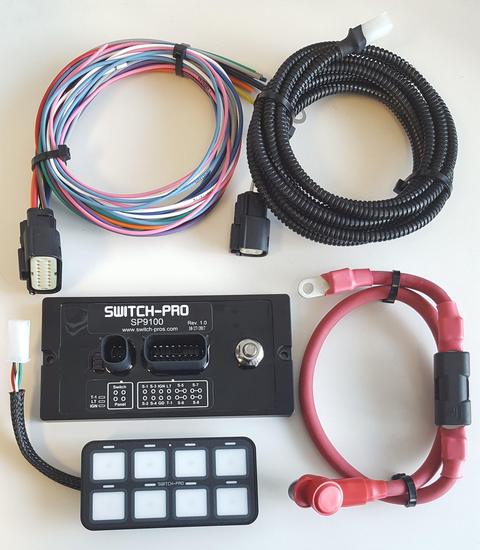

• Kit also Includes:
• 11 of Communication Cable between Switch Panel and Power Module
• Color Coded Output wires
• Wire harness with Waterproof, sealed automotive grade connectors
• Power Cable with 125A inline fuse
